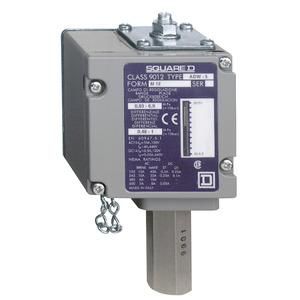

Schneider Electric ADW5M129012 pressure switch

Description

Features

Reviews

ADW NEMA pressure switch for control circuits, 69 bar, adjustable hysteresis, 2 switching points, 1 breaker or 1 make contact

Property	Value
Initial value of measuring range pressure:	930000.0 Pa
Number of auxiliary contacts as breakers:	0.0
Number of auxiliary contacts as make contacts:	0.0
Number of auxiliary contacts as changeover contacts:	1.0
Number of breakers as main contacts:	0.0
Number of normally open contacts as main contacts:	0.0
Design of the electrical connection:	Screw connection
Switch-off pressure:	2.4 to 60.4 bar
Rated operating voltage Ue at AC 50 Hz:	24.0 to 500.0 V
Rated operating voltage Ue at AC 60 Hz:	0.0 to 500.0 V
Rated operating voltage Ue at DC:	24.0 to 600.0 V
Burst pressure:	690.0 bar
Pressure switching difference:	6.9 bar
Switch-on pressure:	2.4 to 60.4 bar
Electronic version:	no
End value measuring range pressure:	6900000.0 Pa
Explosion-proof:	no
Suitable as 2-point controller:	yes
Suitable as a limiter:	yes
Suitable as a guard:	yes
Max. Test pressure:	10.0 bar
Medium temperature:	-25.0 to 120.0 °C
With manual operation:	no
Protection class (IP):	IP65/IP67
Initial setting:	9300.0 to 69000.0 hPa
Final setting:	2400.0 to 60400.0 hPa
Max. Working pressure:	69000.0 hPa
With manual on/off switch:	no
Thread size:	other
With display:	no
Protection class (NEMA):	other
Height:	176.0 mm
Width:	88.0 mm
Depth:	68.0 mm
