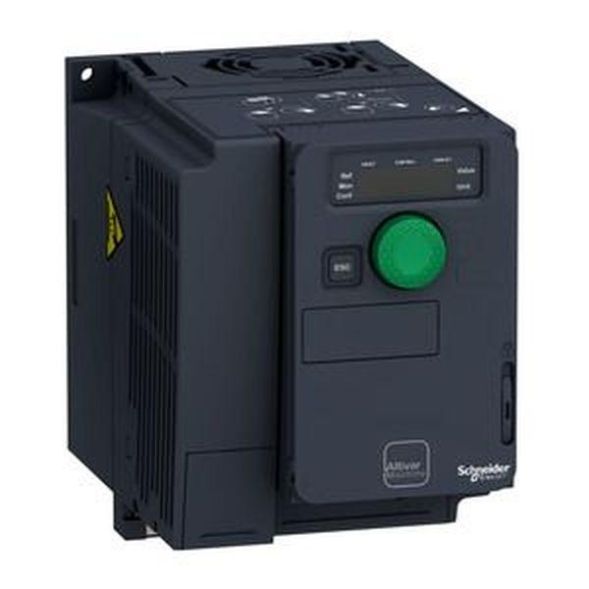

Frequency converter ATV320, compact. Dimensions 105 x 188 x 158 (with EMC plate) mm, power KW 0.55 kW. Supply voltage 3-phase 380-500 V 50/60 Hz, with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2). Converters are supplied with an integrated EMC filter of category C2. The filter can be switched off. Converters are supplied with an EMC plate for assembly by the customer. Description Integrated safety technology with 5 functions safe torque off (STO), safe stop1 (SS1), safe reduced speed (SLS), safe contactor door locking (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) provides the highest speed quality and stability U/F control, U/F2 control, energy saving function. Max. frequency 599 Hz. Extremely simple commissioning, intuitive operation and thanks to Plug & Drive, preset to the most common applications. Options for loading, editing and saving the inverter configurations with tools such as the SoMove commissioning software, the decentralized terminals and the -Simple-Loader- and -Multi-Loader- configuration tools. Class A radio interference filter integrated, can be deactivated. For operation on IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, 2 of which can be switched to digital inputs. Integrated brake module enables 4-quadrant operation without retrofitting.
| Property | Value |
| Protection class (IP): | IP20 |
| Number of PROFINET interfaces: | 0.0 |
| Mains frequency: | 50/60 Hz |
| Nominal output current: | 1.9 A |
| Max. Output voltage: | 500.0 V |
| Mains voltage: | 380.0 to 500.0 V |
| Number of input phases: | 3 |
| Number of HW interfaces parallel: | 0.0 |
| Number of HW interfaces other: | 1.0 |
| Supports protocol for data highway: | no |
| Number of HW interfaces serial RS-422: | 0.0 |
| Number of HW interfaces serial RS-485: | 1.0 |
| 4-quadrant operation possible: | yes |
| Max. Output frequency: | 599.0 Hz |
| Use in industrial areas permitted: | yes |
| With optical interface: | no |
| Height: | 142.0 mm |
| Supports protocol for LON: | no |
| Width: | 105.0 mm |
| Relative symmetrical mains voltage tolerance: | 10.0 % |
| Supports protocol for AS-Interface Safety at Work: | no |
| Depth: | 158.0 mm |
| Type of converter: | U-converter |
| Integrated brake chopper: | no |
| Max. delivered power with linear load at rated output voltage: | 0.55 kW |
| Supports protocol for TCP/IP: | no |
| Supports protocol for DeviceNet: | yes |
| Supports protocol for PROFINET IO: | yes |
| Supports protocol for PROFIBUS: | yes |
| Supports protocol for EtherNet/IP: | yes |
| Supports protocol for INTERBUS-Safety: | no |
| Supports protocol for SUCONET: | no |
| Supports protocol for CAN: | yes |
| Supports protocol for KNX: | no |
| Permitted for use in residential and commercial areas: | no |
| Supports protocol for INTERBUS: | no |
| Number of HW interfaces serial RS-232: | 0.0 |
| Number of HW interfaces serial TTY: | 0.0 |
| Supports protocol for other bus systems: | yes |
| Supports protocol for ASI: | no |
| Supports protocol for SafetyBUS p: | no |
| Supports protocol for Modbus: | yes |
| With control element: | yes |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet Safety: | no |
| Number of HW interfaces Industrial Ethernet: | 1.0 |
| Relative symmetrical mains frequency tolerance: | 5.0 % |
| Supports protocol for SERCOS: | no |
| Number of output phases: | 3 |
| Supports protocol for PROFINET CBA: | no |
| Supports protocol for Foundation Fieldbus: | no |
| Max. delivered power at square. Load at rated output voltage: | 0.55 kW |
| Number of USB hardware interfaces: | 0.0 |
| With PC connection: | yes |
| Number of analog outputs: | 1.0 |
| Number of analog inputs: | 3.0 |
| Number of digital outputs: | 1.0 |
| Number of digital inputs: | 6.0 |
| Supports protocol for BACnet: | no |
| Protection class (NEMA): | 1 |
