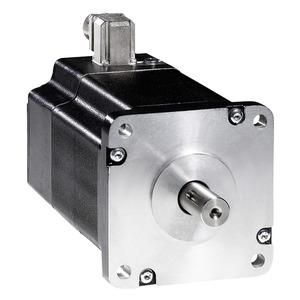

3-phase stepper motor, 13.5Nm, shaft diameter 19mm, length 180mm, without brake, plug
| Property | Value |
| Design: | Three-phase synchronous motor |
| Rated voltage: | 480.0 V |
| Rated frequency: | 50.0 to 60.0 Hz |
| Type of voltage: | AC/DC |
| Rated power at rated frequency: | 0.26 kW |
| Rated speed at rated frequency: | 750.0 1/min |
| Starting torque ratio: | 0.0 |
| Starting current ratio: | 0.0 |
| Number of phases: | 3.0 |
| Shaft end design: | other |
| Design: | other |
| Load cycle: | other |
| Rated current: | 2.6 A |
| Operating temperature: | 0.0 to 40.0 °C |
| Suitable for frequency control: | no |
| Intrinsic safety (IS): | without |
| Insulation class according to IEC: | other |
| Tow-out moment ratio: | 0.0 |
| Cooling method: | other |
| Bearing: | other |
| With condensation protection: | no |
| With positive temperature coefficient resistor (PTC): | no |
| With resistance thermometer detector (RTD): | no |
| Nominal torque: | 0.9 Nm |
| Number of poles: | 0.0 |
| Protection class (IP): | other |
| Overload capacity: | no |
| Vacuum pressure impregnation (VPI): | other |
| Material of Housing: | other |
| Motor energy efficiency class: | other |
Features
Rated frequency
50.0 to 60.0 Hz
HAB
BRS3ACW850ACA 13.5Nm shaft 19mm
Manufacturer
HAN
BRS3ACW850ACA
GTIN
3389119224178
Number of phases
3.0
Version
Three-phase synchronous motor
Design
Other
Rated voltage
480.0V
Rated current
2.6A
Operating temperatur
0.0 to 40.0 °C
Number of poles
0.0
IP protection)
Other
Voltage type
AC/DC
Housing material
Other
