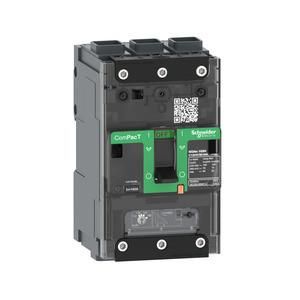

It is a ComPacT NSXm molded case circuit breaker, 160 A, 50 kA at 415 VAC, for all standard LV applications. It offers new features such as Everlink technology, DIN rail and panel mounting capability. It integrates new spring type auxiliary devices that are externally visible. ComPacT NSXm is one of the smallest molded case circuit breakers available on the market, 81 mm (W) x 137 mm (H) x 80 mm (D). This is a 3-pole version with integrated thermo-magnetic trip device. It ensures conformity with international standards (IEC 60947/CCC/EAC) and marine specifications.
| Property | Value |
| Rated continuous current Iu: | 160.0 A |
| Connection type main circuit: | Screw connection |
| Number of poles: | 3.0 |
| Auxiliary normally open contact: | 0.0 |
| Auxiliary normally closed contact: | 0.0 |
| Device design: | Built-in device Fixed installation technology |
| Position of the connection for the main circuit: | front |
| Protection class (IP): | IP40 |
| Overload release current setting: | 112.0 to 160.0 A |
| Setting range of the instantaneous short-circuit release: | 1250.0 A |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 50.0 kA |
| Suitable for DIN rail mounting: | yes |
| Design of the actuating element: | toggle |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| With trip detector: | yes |
| Number of auxiliary contacts as changeover contacts: | 0.0 |
| Complete device with protection unit: | yes |
| DIN rail mounting optional: | no |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
NSXm+TM160 A 3P 50kA/415V ELINK
Manufacturer
HAN
C12N3TM160L
GTIN
3606481991256
Connection type main circuit
Screw connection
Design of the actuating element
Gag
Rated continuous current Iu
160.0A
Rated voltage
690.0V
Setting range of the instantaneous short-circuit release
1250.0A
Suitable for DIN rail mounting
Yes
Device type
Built-in device Fixed installation technology
DIN rail mounting optional
No
Integrated earth fault protection
No
Complete device with protection unit
Yes
With trip detector
Yes
Motor drive integrated
No
Motor drive optional
No
Number of poles
3.0
Position of the connection for main circuit
In front
IP protection)
IP40
Overload release current setting
112.0 to 160.0 A
