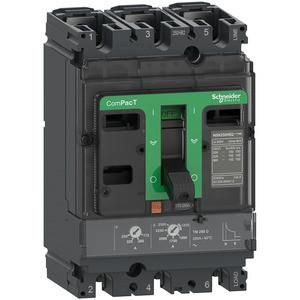

This ComPacT NSX250N is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 50 kA rms at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features a thermal-magnetic trip device (TMD) rated at 250 A. The TMD trip device provides adjustable thermal overload protection and fixed magnetic protection. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a wide range of optional features and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250N is part of the EcoStruxure Power architecture from Schneider Electric.
| Property | Value |
| Rated continuous current Iu: | 250.0 A |
| Connection type main circuit: | Screw connection |
| Number of poles: | 3.0 |
| Auxiliary normally open contact: | 0.0 |
| Auxiliary normally closed contact: | 0.0 |
| Device design: | Built-in device, fixed installation technology |
| Position of the connection for the main circuit: | front |
| Protection class (IP): | IP30 |
| Overload release current setting: | 18.0 to 40.0 A |
| Setting range of the short-time delayed short-circuit release: | 1250.0 to 2500.0 A |
| Setting range of the undelayed short-circuit release: | 1250.0 to 2500.0 A |
| Rated voltage: | 690.0 V |
| Icu at 400V: | 50.0 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | toggle lever |
| Integrated earth fault protection: | no |
| Integrated motor drive: | no |
| Optional motor drive: | yes |
| With trip indicator: | no |
| Number of auxiliary contacts as changeover contacts: | 0.0 |
| Complete device with protection unit: | yes |
| DIN rail mounting optional: | no |
Features
Number of auxiliary contacts as changeover contacts
0.0
HAB
NSX250N+TM250D 3P3D 175-250A 50kA/415VAC
Manufacturer
HAN
C25N3TM250
GTIN
3606481997869
Connection type main circuit
Screw connection
Design of the actuating element
Rocker arm
Rated continuous current Iu
250.0A
Rated voltage
690.0V
Setting range of the short-time delayed short-circuit release
1250.0 to 2500.0 A
Setting range of the instantaneous short-circuit release
1250.0 to 2500.0 A
Suitable for DIN rail mounting
No
Device type
Built-in device Fixed installation technology
DIN rail mounting optional
No
Integrated earth fault protection
No
Complete device with protection unit
Yes
With trip detector
No
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
3.0
Position of the connection for main circuit
In front
IP protection)
IP30
Overload release current setting
18.0 to 40.0 A
