Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power sizes 40 to 65 A are equipped with EverLink terminals. These are patented and ensure a reliable and permanent connection.
| Property | Value |
| Normally open: | 3.0 |
| Normally open: | 2.0 |
| Changeover: | 0.0 |
| Normally open, delayed: | 0.0 |
| Normally open, leading: | 0.0 |
| Rated operating current Ie, 400 V: | 10.0 A |
| Rated control supply voltage AC 50 Hz: | 110.0 V |
| Rated control supply voltage AC 60 Hz: | 110.0 V |
| Mounting type: | DIN rail/screw |
| Interface: | no |
| Voltage type for actuation: | AC |
| With LED display: | no |
| Connection type auxiliary circuit: | Spring-loaded connection |
| Suitable for Manual operation: | no |
Features
Rated control supply voltage AC 50 Hz
110.0 V
HAB

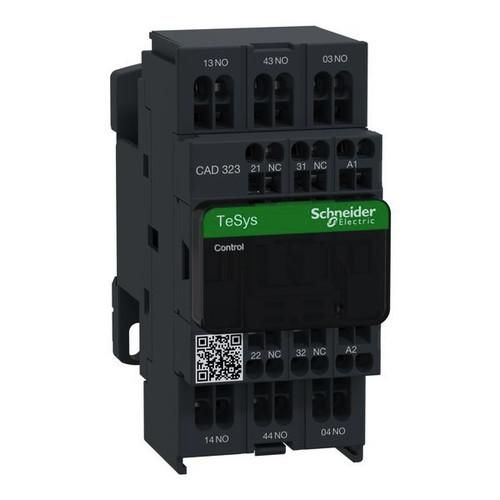

CAD323F7 3S2ö 110V50/60HZ
Manufacturer
HAN
CAD323F7
GTIN
3389110819564
Connection type auxiliary circuit
Spring-loaded connection
Rated operational current Ie, 400 V
10.0A
With LED display
No
Mounting type
DIN rail/screw
Interface
No
Voltage type for actuation
AC
