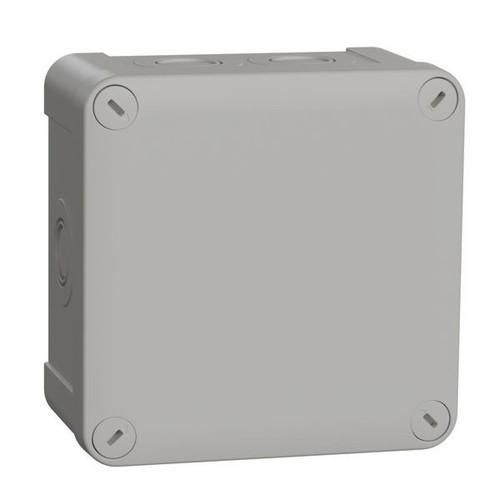

Mureva BOX, junction box, pressure plate 7xM16/20, 105x105x55mm. Product series: Mureva BOX - Product or component type: Junction box - Quantity per set: 5 pieces.
| Property | Value |
| Width: | 115.0 mm |
| Length: | 115.0 mm |
| Depth: | 62.0 mm |
| Color: | grey |
| Protection class (IP): | IP55 |
| Equipment: | without |
| Mounting type: | Wall/ceiling mounting |
| Material: | Plastic |
| Cover fastening: | screwed |
| Can be mounted in series: | no |
| Shape: | square |
| Type of housing feedthrough: | pre-punched |
| Halogen-free: | yes |
| For Ex zone gas: | without |
| Functional integrity: | without |
| Explosion-tested version: | no |
| Supplied with casting compound: | no |
| Potable: | no |
| For Ex zone dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Number of entries: | 7.0 |
| Surface protection: | untreated |
| For pipe diameter: | 20 mm |
| Max. Conductor cross-section: | 20.0 mm² |
| Sealable: | no |
| With shielding: | no |
| Insertion from the rear: | yes |
| Weatherproof: | yes |
| Cover design: | blank cover |
| Operating temperature: | -25.0 to 40.0 °C |
| Protection class (NEMA): | other |
Features
Explosion-tested version
No
HAB
Pressure plate 7xM16/20 105x105x55mm
Minimal order
Pcs
Manufacturer
HAN
ENN05085
GTIN
3295150050853
Cover design
Blind cover
Width
115.0 mm
Operating temperature
-25.0 to 40.0 °C
Color
Shape
Square
Functional preservation
Without
Halogen free
Yes
Length
115.0 mm
Mounting type
Wall/ceiling mounting
Surface protection
Untreated
IP protection)
IP55
Protection class (NEMA)
Other
Depth
62.0 mm
Material
Plastic
