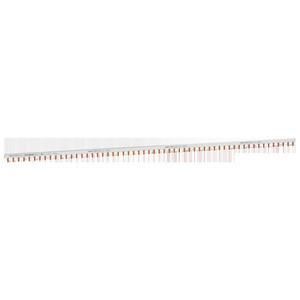

This Easy9 product is a 3P busbar with 57 modules. It is designed for 3P installations. It is a set of 1 device. It is suitable for 19 circuit breakers (3P). This busbar is compatible with Acti9. The total number of 18mm modules is 57. The Ue rated operating voltage is 230VAC (phase to neutral) and 400VAC (phase to phase). The Ui rated insulation voltage is 500VAC. The operating frequency is 50 Hz. Its width is 114 divisions of 9mm. The color is light gray (RAL7035). The degree of protection is IP20. The pollution degree is 3. According to IEC 60695-2-1, the fire resistance is self-extinguishing at 850 °C within 30 s.
| Property | Value |
| Number of poles: | 3.0 |
| Number of phases: | 3.0 |
| Length: | 1000.0 mm |
| Rated continuous current Iu: | 63.0 A |
| Max. Rated operating voltage Ue: | 400.0 V |
| TE: | 57.0 |
| Insulated: | yes |
| Suitable for number of devices: | 19.0 |
| Suitable for devices with N conductor: | no |
| Pitch: | 18.0 mm |
| Suitable for devices with auxiliary switch: | no |
| Design of the electrical connection: | Pen |
| Color: | gray |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
19.0
Pitch dimension
18.0 mm
HAB
Bridge 3P 57 modules 63A
Manufacturer
HAN
EZ9XPH357
GTIN
3606489940645
Number of phases
3.0
Design of the electrical connection
Pen
Rated continuous current Iu
63.0A
Color
Isolated
Yes
Length
1000.0 mm
Max. rated operating voltage Ue
400.0V
Number of poles
3.0
TE
57.0
