Description

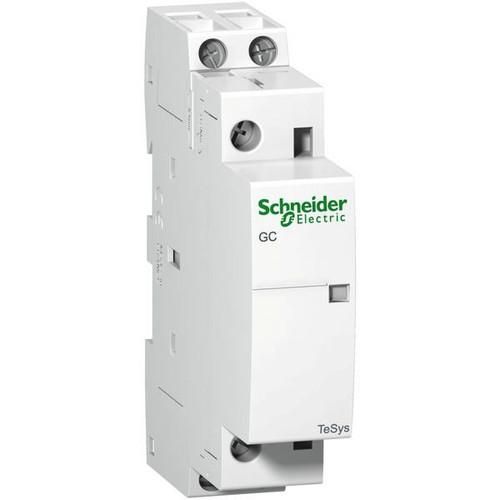

Standard contactors TeSys GC. 16A, 220-240V AC. Auxiliary contacts 2NO. Area of application: engine control, heating, lighting.
| Property | Value |
| Type of operating voltage: | AC |
| Protection class (IP): | IP20 |
| TE: | 1.0 |
| Power P: | 1800.0 W |
| Current I: | 16.0 A |
| Voltage: | 250.0 V |
| Max. fluorescent lamp load (parallel compensated): | 600.0 VA |
| Max. fluorescent lamp load (duo circuit): | 800.0 VA |
| Max. Fluorescent lamp load: | 650.0 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Voltage type: | AC |
| Installation depth: | 62.5 mm |
| Rated operating voltage: | 220.0 to 240.0 V |
| Make contact: | 2.0 |
| Open contact: | 0.0 |
| With day/night function: | yes |
| Hum-free: | yes |
Features
Voltage
250.0 V
Max. fluorescent lamp load
650.0 VA
HAB
GC1620M5 2P. 16A 2S
Minimal order
12 pcs
Manufacturer
HAN
GC1620M5
GTIN
3389110641264
Installation depth
62.5 mm
IP protection)
IP20
Voltage type
AC
TE
1.0
Additional equipment possible
Yes
