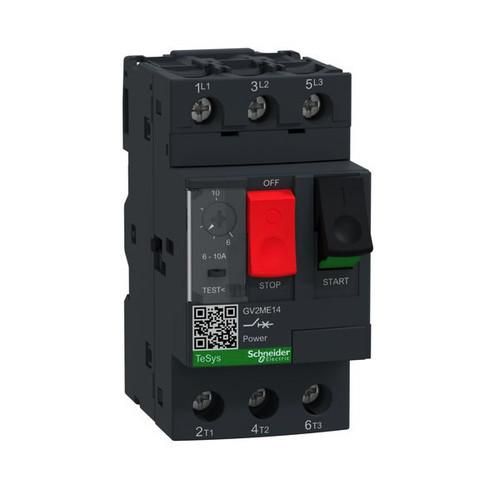

Motor protection switches with thermal and magnetic release These devices are easy to use and set up, with compact and ergonomic products for requirements in the field of starter motors and stop motors.
| Feature | Value |
| Number of poles: | 3.0 |
| Voltage: | 230.0 to 690.0 V |
| Power at 230V: | 2.2 kW |
| Power: | 4.0 kW |
| Rated continuous current Iu: | 10.0 A |
| Short-circuit current Icu: | 100.0 kA |
| Overload release current setting: | 6.0 to 10.0 A |
| Triggering technology: | thermomagnetic |
| Phase failure sensitive: | yes |
| Connection type main circuit: | screw connection |
| Device design: | Complete device in housing |
| Protection class (IP): | IP20 |
| Width: | 45.0 mm |
| Setting range of the instantaneous short-circuit release: | 138.0 A |
| With integrated auxiliary switch: | no |
| With integrated undervoltage release: | no |
| Height: | 89.0 mm |
| Depth: | 78.2 mm |
| Design of the actuating element: | Push button |
| With thermal overload protection: | yes |
Features
Voltage
230.0 to 690.0 V
HAB
GV2ME14 6-10A
Manufacturer
HAN
GV2ME14
GTIN
3389110343137
Connection type main circuit
Screw connection
Design of the actuating element
Push button
Triggering technology
Thermomagnetic
Rated continuous current Iu
10.0A
Width
45.0 mm
Setting range of the instantaneous short-circuit release
138.0 A
Device type
Complete device in housing
Height
89.0 mm
Performance
4.0kW
With integrated auxiliary switch
No
With integrated undervoltage release
No
Sensitive to phase failure
Yes
Number of poles
3.0
IP protection)
IP20
Depth
78.2 mm
Overload release current setting
6.0 to 10.0A
