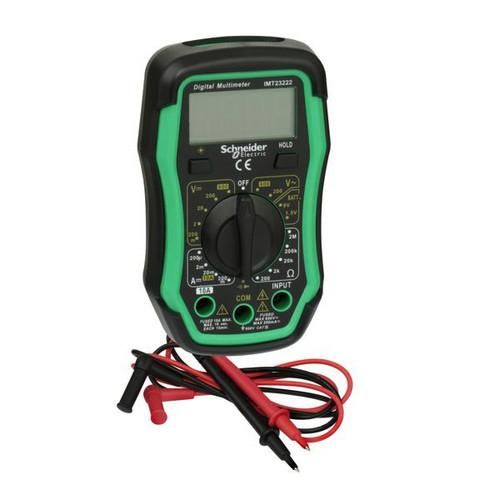

Digital multimeter category 3 600 V, digital multimeter with LCD display with backlight and data hold function. High-performance digital multimeter for measuring voltage, current, resistance and continuity. Functions Battery status indicator, high precision measurement, backlit LCD display, data hold function, built-in stand for hands-free operation, DC voltage range 0.2/2/20/200/600 V, AC voltage range 200/600 V, DC current 0.2 mA/2 mA/20 mA/200 mA/10 A, resistance 200 Ohm /2 k Ohm /20 k/200 k Ohm /2 M Ohm, continuity yes, under 100 Ohm, battery test yes, 1.5 V (AA, AAA and button cell) and 9 V, electrical insulation IEC 61010, Cat. 3 600 V, secured with 250 mA and 10 A fuse, super fast, energy 9 V battery, weight 290 g (with battery), dimensions (H x W x D) 150 x 90 x 40 mm
| Property | Value |
| Max. voltage measuring range AC: | 600.0 V |
| Measurement range selection: | manual |
| Display: | digital |
| With level measurement (dB): | no |
| Frequency measurement: | no |
| Smallest resolution AC voltage: | other |
| Max. Voltage measuring range DC: | 600.0 V |
| Smallest resolution DC voltage: | other |
| Max. current measuring range DC: | 10.0 A |
| Smallest resolution DC: | other |
| Max. Resistance measuring range: | 2.0 MOhm |
| Lowest resistance resolution: | other |
| Continuity test/diode test: | no |
| Relative value measurement: | no |
| Inductance measurement: | no |
| Conductivity measurement: | no |
| Instantaneous value memory (data hold): | yes |
| Maximum value memory: | no |
| Minimal value memory: | no |
| Peak value memory: | no |
| True RMS measurement (TRMS): | no |
| Duty cycle measurements: | no |
| Measured value memory: | no |
| Interface: | no |
| Measurement circuit category: | CAT III |
| Bluetooth interface: | no |
| Speed measurement: | no |
| Continuity test: | yes |
| Explosion-tested version: | no |
| IR interface: | no |
| Cable length measurement: | no |
| Power and energy measurement: | no |
| Line symmetry test for two-wire connections abE: | no |
| Nominal test voltage 10 V: | no |
| Nominal test voltage 100 V: | no |
| Nominal test voltage 1000 V: | no |
| Nominal test voltage 250 V: | no |
| Nominal test voltage 50 V: | no |
| Nominal test voltage 500 V: | no |
| Harmonics analysis/Power Quality: | no |
| Automatic circuit breaker: | no |
| Temperature measurement RTD: | no |
| Temperature measurement TC: | no |
