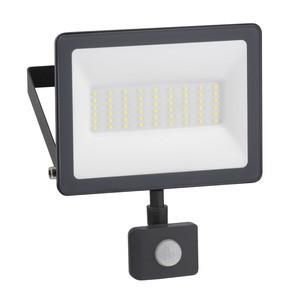

LED spotlight with motion detector 30W, 3000lm, 4000k, IP44, IK05, cable 0.5m. LED spotlight with motion detector for house and object lighting, ideal for medium to large areas where precise light is required. The lighting of outdoor areas contributes greatly to safety on properties, low power consumption, low operating temperature and the compact design are further advantages of these LED spotlights. Areas of application entrances, paths, carports, parking spaces, pivoting LED spotlight with motion detector for wall mounting outdoors, ultra-long service life, alignment can be fixed using a twist lock. Very robust housing made of die-cast aluminum with corrosion-resistant stainless steel screws, wide light distribution 110° for even illumination, high temperature range. Technical data Connection 230-240 VAC, 50HZ, light source LED (LED board permanently mounted), power 30W, luminous intensity (lumen) 3000lm (30W), efficiency 100lm per watt. Beam angle 110°, power factor PFgt/0.9, shock resistance IK04, energy efficiency class A+, connection cable 0.5m pre-assembled, color rendering index (CRI) 80, color temperature 4000k (neutral white). Protection class IP44, LED service life 50,000 hours, detection angle 120°, range max. 12m, follow-up time 10s to 10min continuously adjustable, light sensor (sensitivity) 10lx to 2000lux continuously adjustable. Sensitivity continuously adjustable, dimensions 189.4 x 201.4 x 26.5 mm (30W), weight 820g (30W version), housing made of aluminum (black), optics glass cover, temperature range -30 to +45°C.
| Property | Value |
| System power: | 33.0 W |
| Rated luminous flux: | 3000.0 lm |
| Housing color: | gray |
| Housing material: | Aluminum |
| Protection class (IP): | IP44 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | no |
| With operating device: | no |
| Suitable for recessed mounting: | no |
| Length: | 31.0 mm |
| Width: | 215.4 mm |
| Height/depth: | 221.4 mm |
| With motion detector: | no |
| Color temperature: | 4000.0 K |
| Nominal voltage: | 220.0 to 240.0 V |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | symmetrical |
| Suitable for Lamp power: | 30.0 W |
| Operating device: | not required |
| Impact resistance: | IK04 |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Suitable for number of light sources: | 1.0 |
| Luminous flux: | 3000.0 lm |
| Cover material: | Plastic, matt/satin |
| Cover of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | rotatable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | yes |
| Suitable for pedestal/floor mounting: | yes |
| Suitable for Traverse mounting: | yes |
| With light sensor: | yes |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming phase control: | no |
| Phase control dimming: | no |
| Programmable dimming: | no |
| RF dimming: | no |
| Sine wave reduction dimming: | no |
| Touch and dim dimming: | no |
| Zigbee dimming: | no |
| Push button dimming: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Rated service life L70/B50 at 25 °C: | 30000.0 h |
| Protection class (NEMA): | other |
| Rated ambient temperature according to IEC 62722-2-1: | -30.0 to 45.0 °C |
| Luminous intensity: | 1147.836 cd |
| Type of the wiring: | Termination |
| Power factor: | 0.9 |
| Number of poles: | 3.0 |
| Conductor cross-section: | 1.0 mm² |
| Connectable conductor cross-section: | 1.0 mm² |
| Connection type: | other |
| Luminous efficacy: | 100.0 lm/W |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | other |
| Colour consistency (McAdam ellipse): | other |
