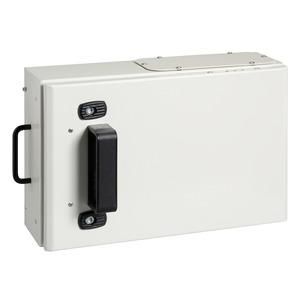

Canalis tap unit for KT and KS. It is used for medium power distribution and TN-C earthing system. The operating voltage ranges from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operating current is 400A at 35 . Mounting by plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar polarity is 3L+PEN. It offers protection for size 2 fuses (fuse to be ordered separately). The device can be switched off by opening the door to the right. Canalis KS busbars are compatible with sockets, Canalis KT busbars are compatible with KS type sockets. It offers IP55 protection, compliant with IEC 60529 standard. IK08 is compliant with IEC 62262. It is compliant with both IEC 61439-1 and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
| Property | Value |
| Number of poles: | 4.0 |
| Number of conductors (excluding earth): | 3.0 |
| Color: | white |
| RAL number: | 9001.0 |
| Rated current AC 50 Hz: | 400.0 A |
| Rated voltage AC 50 Hz: | 230.0 to 690.0 V |
| Number of other sockets: | 0.0 |
| Number of CEE sockets: | 0.0 |
| Phase selection: | no |
| With locking: | no |
| Outlet type: | Cable entry |
| Protection class (IP): | IP55 |
| Number of NEMA sockets: | 0.0 |
| Fuse protection: | without |
| Length: | 600.0 mm |
| Width: | 316.0 mm |
| Height: | 600.0 mm |
