Standard contactors 0.06 -75 kW In addition to an attractive and functional design, the TeSys D contactors offer quick and easy installation with a narrow width of 45 or 55 mm. They meet international standards. The power sizes 40 to 65 A are equipped with EverLink terminals. These are patented and ensure a reliable and permanent connection.
| Property | Value |
| Opener main contact: | 0.0 |
| Maker main contact: | 3.0 |
| Opener auxiliary contacts: | 1.0 |
| Maker auxiliary contacts: | 1.0 |
| Rated operating power at AC-3, 400 V: | 4.0 kW |
| P at AC-4, 400V: | 2.2 kW |
| Rated operating current Ie at AC-1, 400 V: | 25.0 A |
| Ie at AC-3, 400V: | 9.0 A |
| Ie at AC-4, 400V: | 6.0 A |
| Voltage type for actuation: | AC |
| Rated control supply voltage AC 50 Hz: | 48.0 V |
| Voltage AC 60Hz: | 48.0 V |
| Connection type Main circuit: | Screw connection |
| Suitable for series installation: | no |
Features
Rated control supply voltage AC 50 Hz
48.0 V
HAB

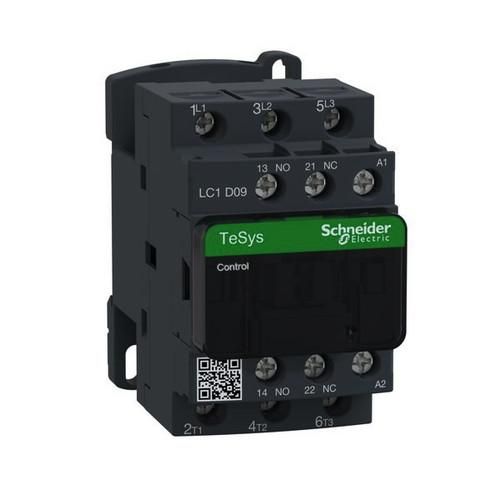

LC1D09E7 3-pole 9A 48V 50/60HZ 1S/1OE
Manufacturer
HAN
LC1D09E7
GTIN
3389110348736
Connection type main circuit
Screw connection
Rated operational power at AC-3, 400 V
4.0kW
Rated operational current Ie at AC-1, 400 V
25.0A
Suitable for series installation
No
Voltage type for actuation
AC
