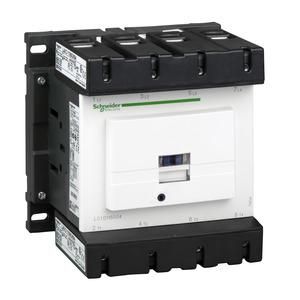

4-pole TeSys D contactor for applications up to 200A/AC1. 24V DC coil, built-in auxiliary contacts 1S, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
| Property | Value |
| Normally open main contact: | 0.0 |
| Normally open main contact: | 4.0 |
| Normally open auxiliary contacts: | 0.0 |
| Rated operating current Ie at AC-1, 400 V: | 200.0 A |
| Voltage type for actuation: | DC |
| Rated control supply voltage DC: | 24.0 V |
| Connection type main circuit: | Screw connection |
| Suitable for series installation: | no |
Features
HAB
LC1D115004BD 4-pin 115A 24VDC
Manufacturer
HAN
LC1D115004BD
GTIN
3389110857245
Connection type main circuit
Screw connection
Rated operational current Ie at AC-1, 400 V
200.0A
Suitable for series installation
No
Voltage type for actuation
DC
