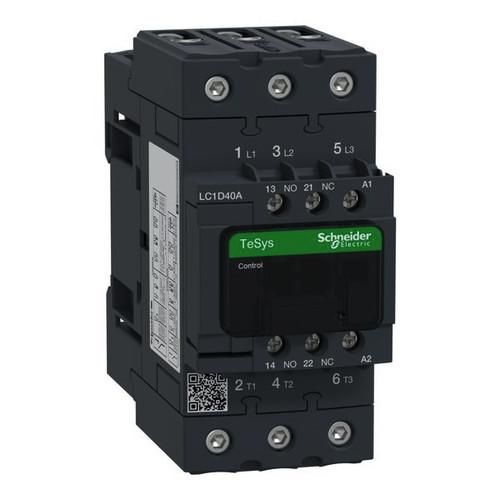

3-pole TeSys D contactor for motor applications up to 18.5kW at 400V/AC3. 230V 50/60Hz AC coil, built-in auxiliary contacts 1NO+1NC, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
| Property | Value |
| Normally open main contact: | 0.0 |
| Normally open main contact: | 3.0 |
| Normally open auxiliary contacts: | 1.0 |
| Normally open auxiliary contacts: | 1.0 |
| Rated operational power at AC-3, 400 V: | 18.5 kW |
| P at AC-4, 400V: | 9.0 kW |
| Rated operating current Ie at AC-1, 400 V: | 60.0 A |
| Ie at AC-3, 400V: | 40.0 A |
| Ie at AC-4, 400V: | 20.0 A |
| Type of voltage for actuation: | AC |
| Rated control supply voltage AC 50 Hz: | 230.0 V |
| Voltage AC 60Hz: | 230.0 V |
| Main circuit connection type: | Screw connection |
| Suitable for series installation: | no |
Features
Rated control supply voltage AC 50 Hz
230.0 V
HAB
LC1D40AP7 3-pole 40A 230V 50/60HZ 1NO/1NC
Manufacturer
HAN
LC1D40AP7
GTIN
3389119408400
Connection type main circuit
Screw connection
Rated operational power at AC-3, 400 V
18.5kW
Rated operational current Ie at AC-1, 400 V
60.0A
Suitable for series installation
No
Voltage type for actuation
AC
