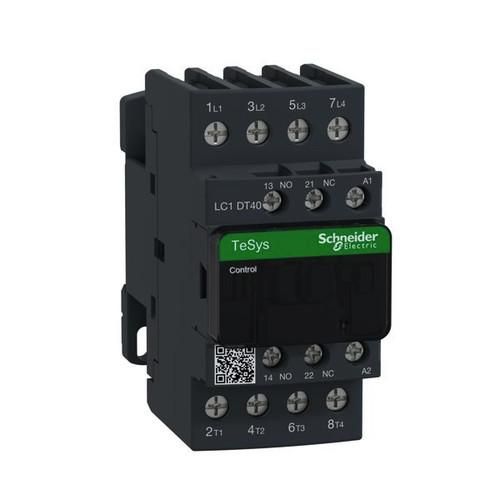

4-pole TeSys D contactor for applications up to 40A/AC1. 230V 50/60Hz AC coil, built-in auxiliary contacts 1NO+1NC, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability, screw terminals. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
| Property | Value |
| Normally open main contact: | 0.0 |
| Normally open main contact: | 4.0 |
| Normally open auxiliary contacts: | 1.0 |
| Normally open auxiliary contacts: | 1.0 |
| Rated operating current Ie at AC-1, 400 V: | 40.0 A |
| Voltage type for actuation: | AC |
| Rated control supply voltage AC 50 Hz: | 230.0 V |
| Voltage AC 60Hz: | 230.0 V |
| Connection type main circuit: | Screw connection |
| Suitable for series installation: | no |
Features
Rated control supply voltage AC 50 Hz
230.0 V
HAB
LC1DT40P7 40A AC-1 230V 50/60HZ
Manufacturer
HAN
LC1DT40P7
GTIN
3389110244779
Connection type main circuit
Screw connection
Rated operational current Ie at AC-1, 400 V
40.0A
Suitable for series installation
No
Voltage type for actuation
AC
