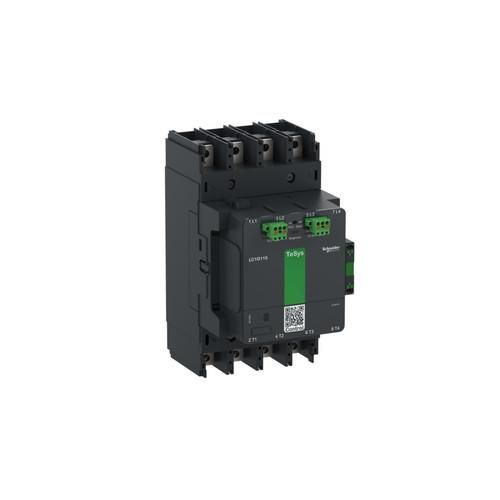

TeSys control - Giga power contactor, 4 poles (4S) for applications in category AC-1 up to 330A at 400V. The contactor has a wide range AC/DC coil of 200-500V with low energy consumption plus two control inputs 24V DC. Supplied with a mounted auxiliary switch block with one normally open and one normally closed contact. Designed for demanding applications with maximum operating rates of up to 600 cycles per hour and environments up to 60°C. High reliability and durability with a mechanical life of 5 Mcycles. Green Premium compliant (RoHs/Reach).
| Property | Value |
| Normally closed main contact: | 0.0 |
| Normally open main contact: | 4.0 |
| Normally closed auxiliary contacts: | 1.0 |
| Normally open auxiliary contacts: | 1.0 |
| Rated operating power at AC-3, 400 V: | 110.0 kW |
| P at AC-4, 400V: | 110.0 kW |
| Rated operating current Ie at AC-1, 400 V: | 330.0 A |
| Ie at AC-4, 400V: | 225.0 A |
| Type of voltage for actuation: | AC/DC |
| Rated control supply voltage AC 50 Hz: | 200.0 to 500.0 V |
| Voltage AC 60Hz: | 200.0 to 500.0 V |
| Rated control supply voltage DC: | 200.0 to 500.0 V |
| Main circuit connection type: | Bolt connection |
| Suitable for series installation: | no |
| NEMA rated operating power: | 150.0 kW |
Features
Rated control supply voltage AC 50 Hz
200.0 to 500.0 V
HAB
TeSys control Giga4-pole 330A AC1200-500V
Manufacturer
HAN
LC1G2254LSEA
GTIN
3606481922755
Connection type main circuit
Bolt connection
Rated operating power NEMA
150.0kW
Rated operational power at AC-3, 400 V
110.0kW
Rated operational current Ie at AC-1, 400 V
330.0A
Suitable for series installation
No
Voltage type for actuation
AC/DC
