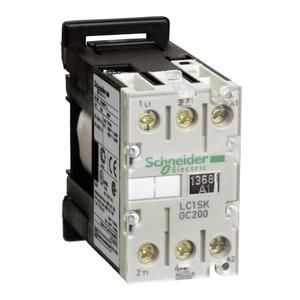

Mini contactors up to 2.2 kW AC -3 TeSys SK enables an extremely space-saving design of switching devices up to 2.2 kW. Five TeSys SK Mini contactors can be used instead of three normal contactors.
| Property | Value |
| Opening contact main contact: | 0.0 |
| Opening contact main contact: | 2.0 |
| Opening contact auxiliary contacts: | 0.0 |
| Opening contact auxiliary contacts: | 0.0 |
| Rated operating current Ie at AC-1, 400 V: | 20.0 A |
| Type of voltage for actuation: | AC |
| Rated control supply voltage AC 50 Hz: | 110.0 V |
| Voltage AC 60Hz: | 110.0 V |
| Connection type main circuit: | Screw connection |
| Suitable for series installation: | yes |
Features
Rated control supply voltage AC 50 Hz
110.0 V
HAB
LC1SKGC200F7
Manufacturer
HAN
LC1SKGC200F7
GTIN
3389110563023
Connection type main circuit
Screw connection
Rated operational current Ie at AC-1, 400 V
20.0A
Suitable for series installation
Yes
Voltage type for actuation
AC
