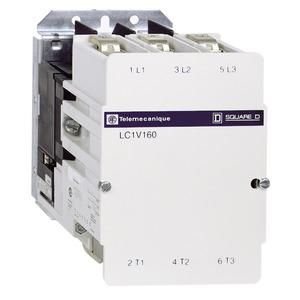

Vacuum contactor LC1V 160A 220 240V 50 60 Hz. Range: TeSys - Product or component type: Vacuum contactor - Device abbreviation: LC1V - Contactor application: Resistive load, Motor control - Usage category: AC-3, AC-1 - Control circuit type: AC - Coil type: Standard - Poles description: 3P - Pole contact number: 3 NO.
| Property | Value |
| Main contact normally closed: | 0.0 |
| Main contact normally open: | 3.0 |
| Auxiliary contact normally closed: | 1.0 |
| Normally open auxiliary contacts: | 2.0 |
| Rated operating power at AC-3, 400 V: | 75.0 kW |
| Rated operating current Ie at AC-1, 400 V: | 160.0 A |
| Ie at AC-3, 400V: | 160.0 A |
| Type of voltage for actuation: | AC |
| Rated control supply voltage AC 50 Hz: | 220.0 to 240.0 V |
| Voltage AC 60Hz: | 220.0 to 240.0 V |
| Connection type main circuit: | Bolt connection |
| Suitable for series installation: | no |
Features
Rated control supply voltage AC 50 Hz
220.0 to 240.0 V
HAB
160A 220/240V 50/60Hz
Manufacturer
HAN
LC1V160P7
GTIN
3389110984040
Connection type main circuit
Bolt connection
Rated operational power at AC-3, 400 V
75.0kW
Rated operational current Ie at AC-1, 400 V
160.0A
Suitable for series installation
No
Voltage type for actuation
AC
