Miniature contactors 0.06 -5.5 kW TeSys K offers you a complete range of miniaturized contactors with an optimal balance between performance and compactness and seamless integration into your applications.
| Feature | Value |
| Type of voltage for actuation: | DC |
| Type of connection main circuit: | Screw connection |
| Operating power: | 30.0 kW |
| Rated operating current Ie: | 63.0 A |
| Rated voltage DC: | 24.0 V |
| With Short circuit release: | yes |
| Protection class (IP): | IP20 |
| Supports protocol for SafetyBUS p: | no |
| Number of auxiliary contacts as normally closed contacts: | 0.0 |
| Supports protocol for INTERBUS: | no |
| Supports protocol for CAN: | no |
| Supports protocol for ASI: | no |
| Design of electrical connection for auxiliary and control circuit: | Screw connection |
| Supports protocol for Foundation Fieldbus: | no |
| Conditional rated short-circuit current, allocation type 2, 230 V: | 50000.0 A |
| Supports protocol for Data Highway: | no |
| Supports protocol for Modbus: | no |
| Supports protocol for PROFINET IO: | no |
| Supports protocol for TCP/IP: | no |
| Supports protocol for SERCOS: | no |
| Supports protocol for EtherNet/IP: | no |
| Supports protocol for other bus systems: | no |
| Supports protocol for PROFINET CBA: | no |
| Type of motor starter: | Direct starter (DOL) |
| Rated operating current at AC-3, 400 V: | 63.0 A |
| Supports protocol for SUCONET: | no |
| DIN rail mounting possible: | no |
| Supports protocol for PROFIsafe: | no |
| Supports protocol for DeviceNet: | no |
| Supports protocol for LON: | no |
| Supports protocol for DeviceNet Safety: | no |
| Ambient temperature, upper limit without restrictions: | 50.0 °C |
| Rated operating power at AC-3, 230 V, 3-phase: | 15.0 kW |
| Conditional rated short-circuit current, allocation type 2, 400 V: | 50000.0 A |
| Supports protocol for PROFIBUS: | no |
| Number of auxiliary contacts as normally open: | 0.0 |
| Supports protocol for AS-Interface Safety at Work: | no |
| Supports protocol for INTERBUS-Safety: | no |
| Rated power, 460 V, 60 Hz, 3-phase: | 33.0 kW |
| Rated power, 575 V, 60 Hz, 3-phase: | 37.0 kW |
| With transformer: | no |
| Number of command points: | 1.0 |
| Suitable for EMERGENCY STOP: | yes |
| Assignment type according to IEC 60947-4-3: | Class 2 |
| Number of indicator lights: | 2.0 |
| External reset possible: | yes |
| With security: | no |
| Width: | 90.0 mm |
| Height: | 250.0 mm |
| Depth: | 192.0 mm |
Features
With fuse
No
Rated operating current Ie
63.0 A
External reset possible
Yes
With transformer
No
Design of electrical connection for auxiliary and control circuit
Screw connection
Type of motor starter
Direct starter (DOL)
Rated operating current at AC-3, 400 V
63.0 A
With short-circuit release
Yes
Ambient temperature, upper limit without restrictions
50.0 °C
Rated operating power at AC-3, 230 V, 3-phase
15.0 kW
Assignment type according to IEC 60947-4-3
Class 2
Conditional rated short circuit current, allocation type 2, 400 V
50000.0 A

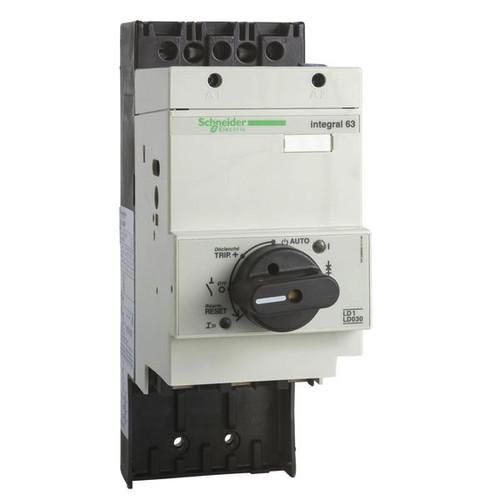

HAB
LD4LD030BD 3-pin 63A
Manufacturer
HAN
LD4LD030BD
GTIN
3389110176674
Connection type main circuit
Screw connection
Number of command posts
1.0
Number of auxiliary contacts as normally open
0.0
Number of auxiliary contacts as normally closed
0.0
Width
90.0 mm
Suitable for EMERGENCY STOP
Yes
Height
250.0 mm
IP protection)
IP20
Voltage type for actuation
DC
Depth
192.0 mm
Mounting rail possible
No
Supports protocol for AS-Interface Safety at Work
No
Supports protocol for ASI
No
Supports protocol for CAN
No
Supports data highway protocol
No
Supports protocol for DeviceNet
No
Supports protocol for DeviceNet Safety
No
Supports protocol for EtherNet/IP
No
Supports protocol for Foundation Fieldbus
No
Supports protocol for INTERBUS
No
Supports protocol for INTERBUS-Safety
No
Supports protocol for LON
No
Supports protocol for Modbus
No
Supports protocol for PROFIBUS
No
Supports protocol for PROFINET CBA
No
Supports protocol for PROFINET IO
No
Supports protocol for PROFIsafe
No
Supports protocol for SERCOS
No
Supports protocol for SUCONET
No
Supports protocol for SafetyBUS p
No
Supports protocol for TCP/IP
No
Supports protocol for other bus systems
No
