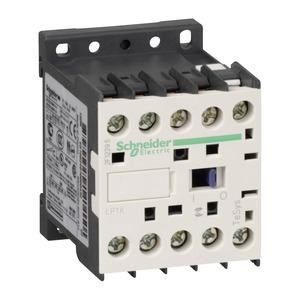

3-pole TeSys K contactor for motor applications up to 4kW at 400V/AC3. 24V DC coil, built-in auxiliary contacts 1S, can be used in safety applications thanks to its validated S-mirror contact. Compact, DIN rail mounting, thus high reliability and durability. Multi-standard validated (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
| Property | Value |
| Normally open main contact: | 0.0 |
| Normally open main contact: | 3.0 |
| Normally open auxiliary contacts: | 0.0 |
| Normally open auxiliary contacts: | 1.0 |
| Rated operational power at AC-3, 400 V: | 4.0 kW |
| P at AC-4, 400V: | 2.2 kW |
| Rated operating current Ie at AC-1, 400 V: | 20.0 A |
| Ie at AC-3, 400V: | 9.0 A |
| Ie at AC-4, 400V: | 6.0 A |
| Type of voltage for actuation: | DC |
| Rated control supply voltage DC: | 24.0 V |
| Type of connection main circuit: | Screw connection |
| Suitable for series installation: | no |
Features
HAB
LP1K0910BD 9A
Manufacturer
HAN
LP1K0910BD
GTIN
3389110363241
Connection type main circuit
Screw connection
Rated operational power at AC-3, 400 V
4.0kW
Rated operational current Ie at AC-1, 400 V
20.0A
Suitable for series installation
No
Voltage type for actuation
DC
