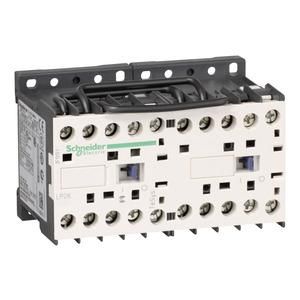

Miniature contactors 0.06 -5.5 kW TeSys K offers you a complete range of miniaturized contactors with an optimal balance between performance and compactness and seamless integration into your applications.
| Feature | Value |
| Main circuit connection type: | Screw connection |
| Type of voltage for actuation: | DC |
| Function: | Reversing contactor |
| Rated operating power at AC-3, 400 V: | 2.2 kW |
| Rated control supply voltage DC: | 24.0 V |
| Degree of protection (IP): | IP20 |
| Rated operating current Ie at AC-3, 400 V: | 6.0 A |
| Rated operating power NEMA: | 2.24 kW |
| Degree of protection (NEMA): | other |
| Number of normally closed contacts as main contacts: | 0.0 |
| Number of normally open contacts as main contacts: | 3.0 |
| Design of electrical connection for auxiliary and control circuit: | Screw connection |
| Mounting rail possible: | no |
Features
Design of electrical connection for auxiliary and control circuit
Screw connection
HAB
LP2K0610BD3 3-pin 6A 24VDC
Manufacturer
HAN
LP2K0610BD3
GTIN
3389110496963
Connection type main circuit
Screw connection
Number of normally open contacts as main contacts
3.0
Rated operating power NEMA
2.24kW
Rated operational power at AC-3, 400 V
2.2kW
Rated operational current Ie at AC-3, 400 V
6.0A
Function
Reversing contactor
IP protection)
IP20
Protection class (NEMA)
Other
Voltage type for actuation
DC
Mounting rail possible
No
