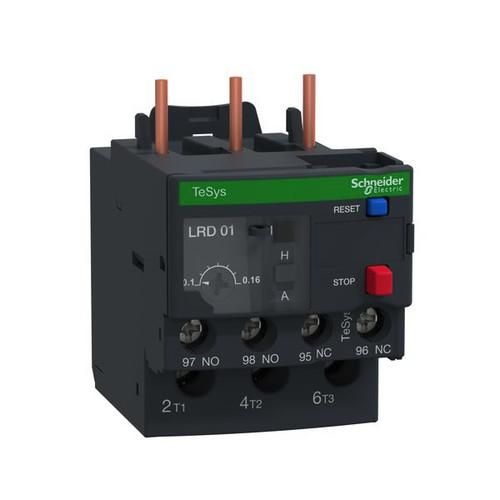

Motor protection relays 0.06 -75 kW Thermal overload relays TeSys LRD are extremely reliable and cover the entire motor range up to 150 A. They have a manual-automatic reset and are available with different terminal variants. In combination with TeSys D they become an extremely compact starter.
| Property | Value |
| Connection type main circuit: | Screw connection |
| Opener: | 1.0 |
| Maker: | 1.0 |
| Changeover: | 0.0 |
| Adjustable current range: | 0.1 to 0.16 A |
| Mounting type: | Direct mounting/stand-alone installation |
| Trip class: | CLASS 10 A |
| Max. rated operating voltage Ue: | 690.0 V |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function button: | yes |
Features
Adjustable current range
0.1 to 0.16A
Automatic reset function
Yes
Input reset function
No
Button reset function
Yes
HAB
LRD01
Manufacturer
HAN
LRD01
GTIN
3389110346718
Connection type main circuit
Screw connection
Trigger class
CLASS 10 A
Max. rated operating voltage Ue
690.0V
Mounting type
Direct mounting/individual installation
