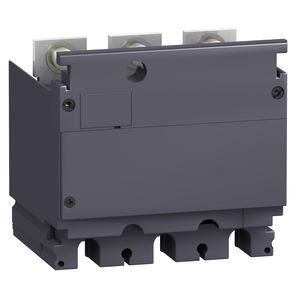

3p 125/5A current transformer module + voltage output NSX100-250 circuit breaker accessories.. Product series: NSX100...250 - Series: Compact - Short name of the device: Current transformer module and voltage output - Product or component type: Transformer - Device application: Control - Description of poles: 3P - Network connection: AC.
| Property | Value |
| Secondary connection: | Screw connection |
| With touch protection: | yes |
| Design: | Through-hole current transformer |
| Primary rated current: | 125.0 A |
| Secondary rated current: | 5.0 A |
| Secondary rated apparent power: | 1.1 VA |
| Snap-on mounting: | no |
| Number of primary inputs: | 3.0 |
| With copper bar: | no |
| Calibrated: | yes |
| Accuracy class: | 1 |
Features
Accuracy class
1
HAB
LV429461 3-pin 125/5A
Manufacturer
HAN
LV429461
GTIN
3606480020711
Version
Through-hole current transformer
