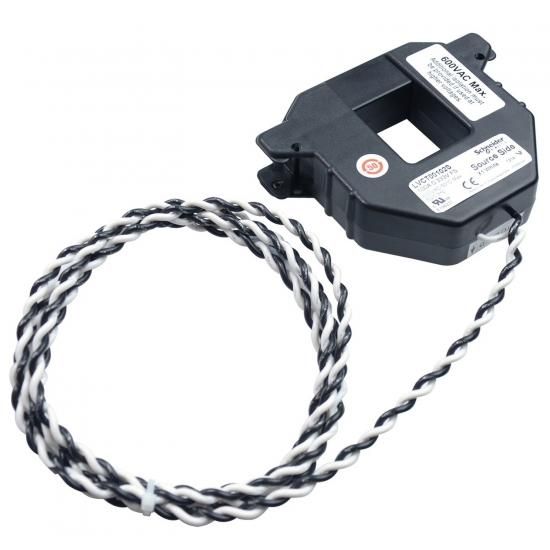

LVCT cable-balanced current transformer - only for BCPM (-SC) input measurement, PowerLogic EM4235, Acti 9 iEM3455 and iEM3465. Dimensions 100 x 96 x 30 / 121 mm, internal dimensions 30 x 31 mm, rated current_Ipn 300 A. Cable-balanced current transformer of the type LVCT (Low Voltage Current Transformer with 0.333 V) for primary currents Ipn from 50 to 2400 A and secondary signal 0.333 V. Suitable for BCPM and BCPM-SC feed-in measurement (A/B), retrofit energy meters iEM3455, iEM3465, retrofit Enercept EM4235. Note: 3 pieces are required for a 3-phase measurement (or 4 pieces for N-conductor measurement with EM4235). Accuracy 1% from 10% to 100% Ipn. Frequency range 50/60 Hz. Rated insulation voltage 300 V AC (LVCT0xxxx0S) or for insulated cables 600 V AC (LVCT0xxxx1S/2S/3S/4S). Operating temperature 0C to 70C (LVCT0xxxx0S/1S), -15C to 60C (LVCT0xxxx2S/3S/4S). Length of supply cable 1.8 m (extendable to 10 m with 1.0 mm). Pollution degree 2, measurement category III, cable length 1.8 m.
| Property | Value |
| Secondary connection: | Cable |
| With touch protection: | no |
| Design: | Cable split core current transformer |
| Primary rated current: | 300.0 A |
| Snap-on fastening: | no |
| Number of primary inputs: | 1.0 |
| With Copper rail: | no |
| Calibrated: | no |
| Opening diameter: | 0.0 mm |
| Accuracy class: | 1 |
| Height of opening: | 30.0 mm |
| Opening width: | 31.0 mm |
