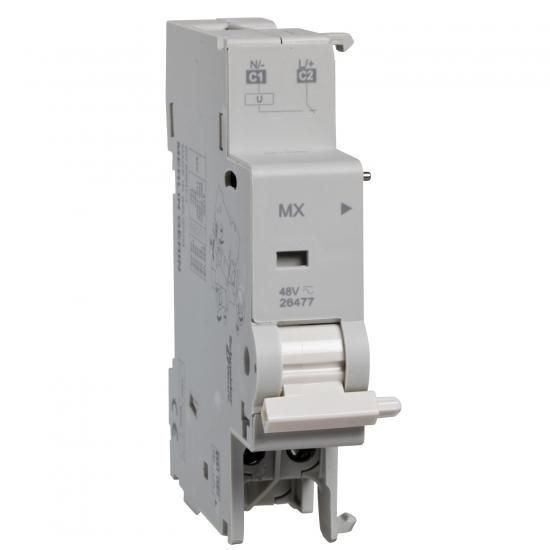

Shunt release MX Multi 9 OEM. Operating voltage (Ue) 100-415V AC / 110-113V DC. Releases the associated device when it is switched on. With mechanical status indicator light (red) on the front. Emergency stop via closing button. The MX shunt release complies with the following standards - IEC/EN 60947-1.
| Property | Value |
| Rated voltage: | 415.0 V |
| Number of fault signal switches: | 0.0 |
| Width in modular spacing: | 1.0 |
| Device mounting: | Circuit breaker |
| Suitable for max. number of poles of the main contact unit (total): | 4.0 |
| Suitable for max. current of the main contact unit: | 63.0 A |
| With autotest for residual current function: | no |
| Number of contacts as normally open: | 0.0 |
| Number of contacts as normally closed: | 0.0 |
| Number of contacts as changeover: | 0.0 |
Features
HAB
M9 MX100-415VAC 110-130VDC
Manufacturer
HAN
M9A26476
GTIN
3606480639012
Number of contacts as normally open
0.0
Number of contacts as changeover
0.0
Number of contacts as opener
0.0
Rated voltage
415.0V
Width in pitch units
1.0
