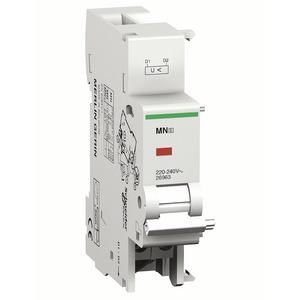

Undervoltage release MN Selective Multi 9 OEM (delayed) . Operating voltage (Ue) 220-240V AC. Causes the device with which it is combined to trip when the input voltage drops (between 70% and 35% of Un) . Prevents the device from closing until the input voltage is restored. No tripping in the event of brief voltage drops (up to 0.2 s) . With mechanical status indicator light (red) on the front. Emergency stop by opening button. Ensures the safety of the power supply circuits for several installations by preventing accidental switching on. The undervoltage release MN meets the following standards - IEC/EN 60947-1, EN 60947-2.
| Property | Value |
| Rated voltage: | 240.0 V |
| Number of fault signal switches: | 0.0 |
| Width in modular spacing: | 1.0 |
| Device mounting: | Circuit breaker |
| Suitable for max. number of poles of the main contact unit (total): | 4.0 |
| Suitable for max. Current of the main contact unit: | 63.0 A |
| With autotest for residual current function: | no |
| Number of contacts as normally open: | 0.0 |
| Number of contacts as normally closed: | 0.0 |
| Number of contacts as changeover: | 0.0 |
Features
HAB
M9 MN SELECTIVE 240V AC
Manufacturer
HAN
M9A26963
GTIN
3606480639135
Number of contacts as normally open
0.0
Number of contacts as changeover
0.0
Number of contacts as opener
0.0
Rated voltage
240.0V
Width in pitch units
1.0
