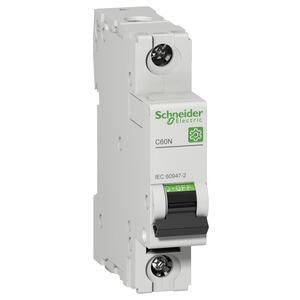

Circuit breaker C60N - Product or component type: MCB - Miniature circuit breaker - Device abbreviation: C60N - Trip unit technology: thermomagnetic - Tripping characteristics: B, C, D - Standards: IEC/EN 60947-2 - Connection: cage terminals - Voltage: AC - Short-circuit breaking capacity: 10kA
| Property | Value |
| Trip characteristic: | C |
| Rated current: | 16.0 A |
| Rated voltage: | 240.0 V |
| Type of voltage: | AC/DC |
| Frequency: | 50.0 to 60.0 Hz |
| TE: | 1.0 |
| Number of poles (total): | 1.0 |
| Energy limitation class: | 3.0 |
| Additional equipment possible: | yes |
| Overvoltage category: | 4.0 |
| Installation depth: | 44.0 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icu according to IEC 60947-2 at 230 V: | 10.0 kA |
| Pollution degree: | 3.0 |
| Switching neutral conductor: | no |
| Number of protected poles: | 1.0 |
| Flush-mounted installation: | no |
| Rated insulation voltage Ui: | 500.0 V |
| Rated impulse withstand voltage Uimp: | 6.0 kV |
| Ambient temperature during operation: | -30.0 to 70.0 °C |
| Connectable conductor cross-section, stranded: | 1.0 to 25.0 mm² |
| Connectable conductor cross-section, single-wire: | 1.0 to 25.0 mm² |
| Explosion-proof: | no |
Features
Flush-mounted installation
No
HAB
M9 C60N 1P 16A IEC60947-2
Manufacturer
HAN
M9F11116
GTIN
3606480576126
Connectable conductor cross-section solid
1.0 to 25.0 mm²
Connectable conductor cross-section stranded
1.0 to 25.0 mm²
Number of protected poles
1.0
Trigger characteristics
C
Rated insulation voltage Ui
500.0V
Rated switching capacity Icu according to IEC 60947-2 at 230 V
10.0kA
Rated voltage
240.0V
Rated impulse withstand voltage Uimp
6.0kV
Rated current
16.0A
Installation depth
44.0 mm
Energy limitation class
3.0
Explosion-proof
No
Frequency
50.0 to 60.0 Hz
Switching neutral conductor
No
Number of poles (total)
1.0
IP protection)
IP20
Voltage type
AC/DC
TE
1.0
Ambient temperature during operation
-30.0 to 70.0 °C
Degree of contamination
3.0
Additional equipment possible
Yes
Overvoltage category
4.0
