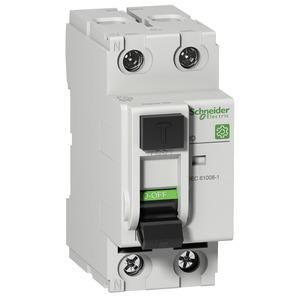

Residual current circuit breaker ID - Abbreviation of the device: FI ID IEC/EN 61008-1 - Technology of the trip unit: residual current - Standard: IEC/EN 61008-1 - Connection: cage terminals - Voltage: AC
| Property | Value |
| Rated voltage: | 240.0 V |
| Current: | 40.0 A |
| Residual current: | 0.3 A |
| Mounting type: | DIN rail |
| Degree of protection (IP): | IP20 |
| Frequency: | 50 Hz |
| Number of poles: | 2.0 |
| TE: | 2.0 |
| Selective type: | no |
| Residual current type: | AC |
| Additional devices possible: | no |
| Installation depth: | 44.0 mm |
| Surge current strength: | 0.25 kA |
| Short-time delayed type: | no |
| Rated insulation voltage Ui: | 440.0 V |
| Rated impulse withstand voltage Uimp: | 6.0 kV |
| With locking device: | no |
| Ambient temperature during operation: | -5.0 to 40.0 °C |
| Pollution degree: | 3.0 |
| Connectable conductor cross-section, stranded: | 1.0 to 25.0 mm² |
| Connectable conductor cross-section, single-wire: | 1.0 to 35.0 mm² |
| Voltage type: | AC |
| Explosion-proof: | no |
Features
HAB
M9 ID 2P 40A 300MA AC
Manufacturer
HAN
M9R14240
GTIN
3606480578359
Connectable conductor cross-section solid
1.0 to 35.0 mm²
Connectable conductor cross-section stranded
1.0 to 25.0 mm²
Rated insulation voltage Ui
440.0V
Rated voltage
240.0V
Rated impulse withstand voltage Uimp
6.0kV
Installation depth
44.0 mm
Explosion-proof
No
Residual current type
AC
Frequency
50Hz
Short-time delayed type
No
With locking device
No
Mounting type
DIN rail
Number of poles
2.0
IP protection)
IP20
Selective type
No
Voltage type
AC
Surge current strength
0.25kA
TE
2.0
Ambient temperature during operation
-5.0 to 40.0 °C
Degree of contamination
3.0
Additional equipment possible
No
