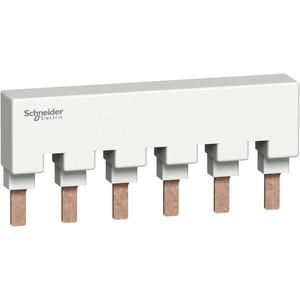

Comb busbar Multi 9 OEM for C60BP (UL 489). 2-pole, rated current 115A, 6 pitch units, step size 18mm, operating voltage (Ue) 480Y/277V, insulation voltage (Ui) 1000V AC. These comb busbars are only used for C60BP circuit breakers according to UL 489. They generate a voltage supply directly in the cage of the circuit breaker. Compatible with the breaking capacity of the modular circuit breakers from Schneider Electric. This comb busbar cannot be cut to length and must not be cut. Comb busbar for C60BP meets the following standards - UL 508.
| Property | Value |
| Number of poles: | 2 |
| Number of phases: | 2 |
| Insulated: | yes |
| Suitable for number of devices: | 3 |
| Rated continuous current Iu: | 115 A |
| Max. Rated operating voltage Ue: | 1000 V |
| Suitable for devices with N conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Design of the electrical connection: | pin |
| Number of modular spacings: | 18 |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
No
Suitable for number of devices
3
HAB
M9 F UL489 2P 6MOD
Manufacturer
HAN
M9XUP206
GTIN
3606481192813
Number of phases
2
Design of the electrical connection
Pen
Rated continuous current Iu
115 A
Isolated
Yes
Max. rated operating voltage Ue
1000V
Number of poles
2
