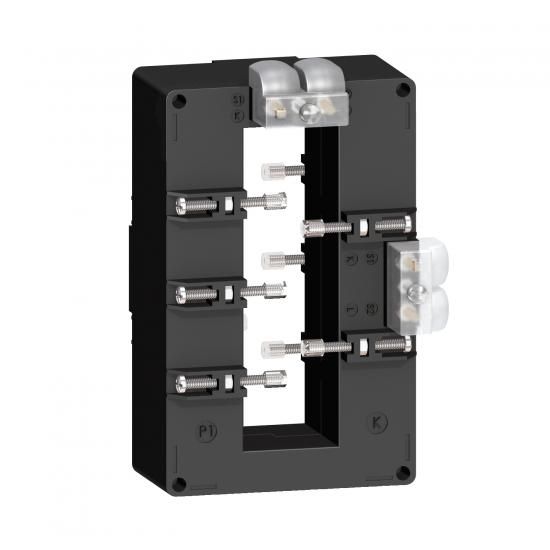

CONVERTER TI 2500_5 FL.BUSBAR 38x127. Series: PowerLogic - Product name: CT - Product or component type: Transformer - Secondary current: 5 A - Accuracy class: Class 0.5 maximum power: 20 VA, Class 1 maximum power: 25 VA - Rated operating current Ie: 2500 A.
| Property | Value |
| Overcurrent limiting factor: | FS 5 |
| Secondary connection: | Screw connection |
| With touch protection: | no |
| Design: | Through-hole current transformer |
| Primary rated current: | 2500.0 A |
| Secondary rated current: | 5.0 A |
| Secondary rated apparent power: | 25.0 VA |
| Snap-on mounting: | no |
| Number of primary inputs: | 1.0 |
| With copper bar: | no |
| Calibrated: | no |
| Opening diameter: | 0.0 mm |
| Accuracy class: | 1 |
| Height of opening: | 127.0 mm |
| Width of opening: | 38.0 mm |
Features
Height of the Opening
127.0 mm
Accuracy class
1
HAB
METSECT5DB250
Manufacturer
HAN
METSECT5DB250
GTIN
3303431123766
Version
Through-hole current transformer
