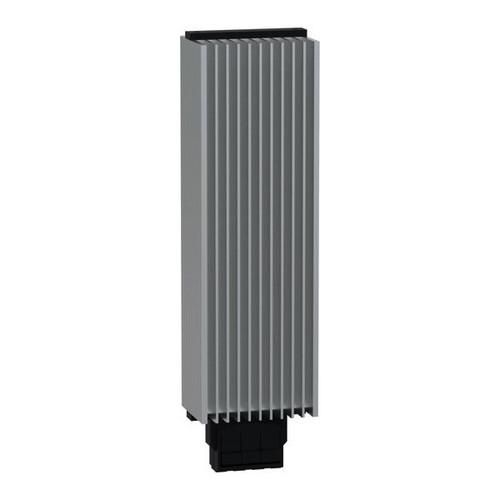

ClimaSys PTC heating resistor. 150W, 110-250V AC, 50/60 Hz. -40 to 70°C operating temperature. Electrical connection 4 screw terminals 2.5 mm. 35 mm DIN rail mounting bracket. Housing made of extruded aluminum. Protection class IP20. Electrical protection required, must be installed with a thermoregulator.
| Property | Value |
| Operating voltage AC 60 Hz: | 110.0 to 250.0 V |
| Operating voltage AC 50 Hz: | 110.0 to 250.0 V |
| Voltage type: | AC |
| Protection class (IP): | IP20 |
| With room thermostat: | no |
| Width: | 80.0 mm |
| Height: | 285.0 mm |
| Depth: | 70.0 mm |
| Rated power: | 150.0 W |
| With fan: | no |
| Continuous heating output at 10 °C: | 150.0 W |
| Protection class (NEMA): | 1 |
Features
HAB
ClimaSys PTC 150W 110-250V
Manufacturer
HAN
NSYCR150WU2
GTIN
3606480152221
Width
80.0 mm
Height
285.0 mm
With room thermostat
No
IP protection)
IP20
Protection class (NEMA)
1
Voltage type
AC
Depth
70.0 mm
