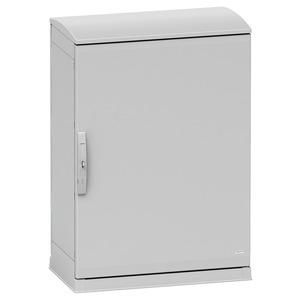

High performance housing for outdoor installation H 1343 W 1250 D 420, IP55, solid door. Series: Thalassa- - Product name: PHD - Product specific application: Outdoor use heavy load - Product certifications: Bureau Veritas according to IEC 61439-5 (2010) , UL according to UL 508 A (2007) , DEKRA according to IEC 62208 (2011) , Bureau Veritas according to IEC 61969-3 (2011) - Equipment application: Multi-purpose - Product or component type: Suitable cabinet - Short name of the device: PHDZT - Nominal housing height: 1343 mm - Height: 38 mm - Nominal housing width: 1250 mm - Nominal housing depth: 420 mm - Equipment structure: 2 doors in double glass fiber reinforced polyester in side by side, 1 plan pocket in plastic A4 format, 1 housing in double glass fiber reinforced polyester, 2 door retainer in sheet steel with Anti-corrosion coating.
| Property | Value |
| Can be stacked: | yes |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | untreated |
| Height: | 1343 mm |
| Width: | 1250 mm |
| Depth: | 420 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035 |
| With mounting plate: | no |
| Material: | plastic |
| Number of locks: | 2 |
| Number of doors: | 2 |
| EMC version: | no |
| With viewing door: | no |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | no |
| With ventilation door: | no |
| Floor installation possible: | yes |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | yes |
| Wall mounting possible: | no |
| Wall installation: | no |
