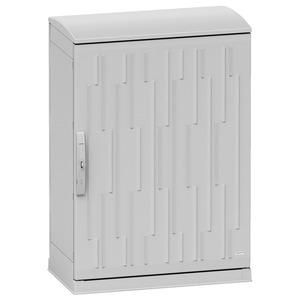

Heavy-duty enclosure for outdoor installation H1343 W500 D420,IP55,poster protection door. Series: Thalassa- - Product name: PHD - Product specific application: Outdoor use heavy load - Product certifications: Bureau Veritas according to IEC 61969-3 (2011), UL according to UL 508 A (2007), DEKRA according to IEC 62208 (2011), Bureau Veritas according to IEC 61439-5 (2010) - Equipment application: Multi-purpose - Product or component type: Suitable cabinet - Short name of the device: PHDZT - Nominal housing height: 1343 mm - Height: 38 mm - Nominal housing width: 500 mm - Nominal housing depth: 420 mm - Equipment structure: 1 door retainer in sheet steel with anti-corrosion coating, 1 plan pocket in plastic A4 format, 1 door in double glass fiber reinforced polyester, 1 housing in double glass fiber reinforced polyester.
| Property | Value |
| Can be stacked: | yes |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | untreated |
| Height: | 1343 mm |
| Width: | 500 mm |
| Depth: | 420 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035 |
| With mounting plate: | no |
| Material: | plastic |
| Number of locks: | 1 |
| Number of doors: | 1 |
| EMC version: | no |
| With Viewing door: | no |
| Depth-adjustable mounting plate: | no |
| Suitable for metric mounting: | no |
| With ventilation door: | no |
| Floor installation possible: | yes |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | yes |
| Wall mounting possible: | no |
| Wall installation: | no |
