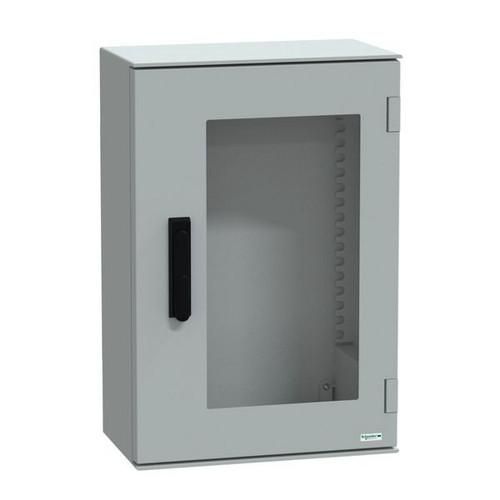

Thalassa PLM wall-mounted polyester enclosure monobloc with viewing door. 647x 436x 250 mm. Integrated rain cover, body molded in one piece with mounting notches on the back. Without mounting plate. 2 locks (3-point lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fiberglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13.4X) 960°C fire resistance.
| Property | Value |
| Can be mounted in rows: | no |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | untreated |
| Height: | 647 mm |
| Width: | 436 mm |
| Depth: | 250 mm |
| Color: | gray |
| Protection class (IP): | IP66 |
| RAL number: | 7035 |
| With mounting plate: | no |
| Material: | plastic |
| Number of locks: | 2 |
| Number of doors: | 1 |
| EMC version: | no |
| With viewing door: | yes |
| Depth-adjustable mounting plate: | no |
| Suitable for metric mounting: | no |
| With ventilation door: | no |
| Floor installation possible: | no |
| Mast mounting: | yes |
| Impact resistance: | IK08 |
| Sloped roof: | no |
| Wall mounting possible: | yes |
| Wall installation: | no |
Features
HAB
7035 647X436X250
Manufacturer
HAN
NSYPLM64TVG
GTIN
3606480776670
Surface finish
Untreated
Width
436 mm
EMC version
No
Color
Suitable for outdoor installation
Yes
Height
647 mm
With mounting plate
No
RAL number
7035
Impact resistance
IK08
Depth
250 mm
Material
Plastic
