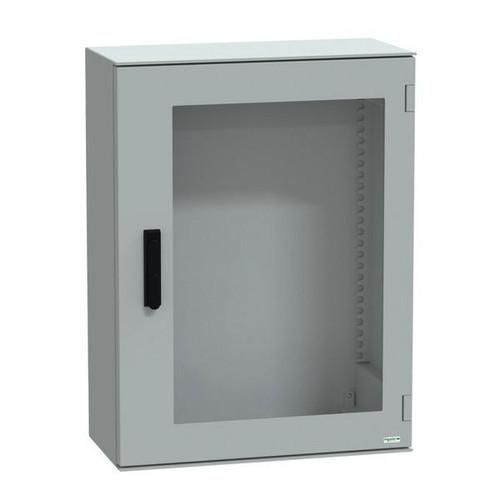

Wall mounting incl. polyester monobloc IP66 847x636x300mm 3p.lock glazed door. Series: Thalassa - Product name: Thalassa PLM - Device short name: PLM - Device application: Multi-purpose - Product or component type: Compact enclosure - Nominal enclosure height: 847 mm - Nominal enclosure width: 636 mm - Nominal enclosure depth: 300 mm - Device construction: Door 1, Housing 1, Locking Handle 1 - Housing Type: One-piece molded with notches in the back, integrated canopy - Door Type: Transparent - Lock Type: 3-point locking, key with 1242E key switch.
| Value | |
| Can be stacked: | no |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | untreated |
| Height: | 847 mm |
| Width: | 636 mm |
| Depth: | 300 mm |
| Color: | grey |
| Protection class (IP): | IP66 |
| RAL number: | 7035 |
| With Mounting plate: | no |
| Material: | Plastic |
| Number of Locks: | 2 |
| Number of doors: | 1 |
| EMC version: | no |
| With viewing door: | yes |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | yes |
| With Ventilation door: | no |
| Floor installation possible: | no |
| Mast mounting : | yes |
| Impact resistance: | IK08 |
| Sloped roof:< /td> | no |
| Wall mounting possible: | yes |
| Wall installation: | no |
Features
HAB
7035 847X636X300 3P
Manufacturer
HAN
NSYPLM86TVG
GTIN
3606480776793
Surface finish
Untreated
Width
636 mm
EMC version
No
Color
Suitable for outdoor installation
Yes
Height
847 mm
With mounting plate
No
RAL number
7035
Impact resistance
IK08
Depth
300 mm
Material
Plastic
