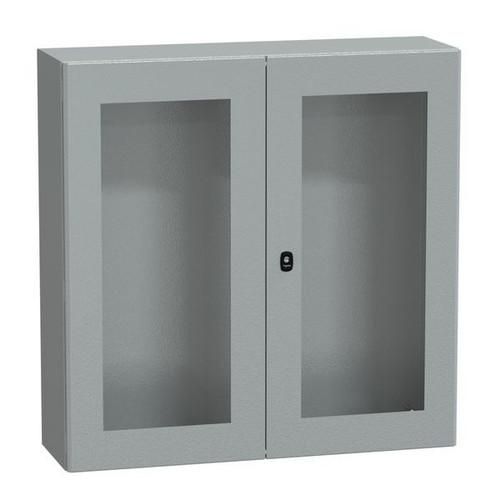

Spacial S3D db tspt door without mounting plate H1000xW1000xD300 IP55 IK08 RAL7035.. Product series: Spacial S3D - Device application: Multipurpose - Product or component type: Compact enclosure - Nominal enclosure height: 1000 mm - Nominal enclosure width: 1000 mm - Nominal enclosure depth: 300 mm - Description of mounting plate: without mounting plate - Type of feed-through plate: Standard - Device structure: Enclosure 1, cable entry plate 2, door 2, locking 1.
| Property | Value |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 1000.0 mm |
| Width: | 1000.0 mm |
| Depth: | 300.0 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 2.0 |
| EMC version: | no |
| With viewing door: | yes |
| Depth-adjustable mounting plate: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | yes |
| Impact resistance: | IK08 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | yes |
| Suitable for wall mounting: | yes |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load on the housing/cabinet according to IEC 62208: | 250.0 N |
| Max. permissible load on the mounting plate according to IEC 62208: | 250.0 N |
Features
HAB
Spacial tspt without plate H1000xW1000xD300
Manufacturer
HAN
NSYS3D101030DT
GTIN
3606480160318
Surface finish
Powder coated
Width
1000.0 mm
EMC version
No
Color
Suitable for outdoor installation
Yes
Suitable for wall mounting
Yes
Height
1000.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK08
IP protection)
IP55
Protection class (NEMA)
12
Depth
300.0 mm
Material
Steel
Material quality
Other
