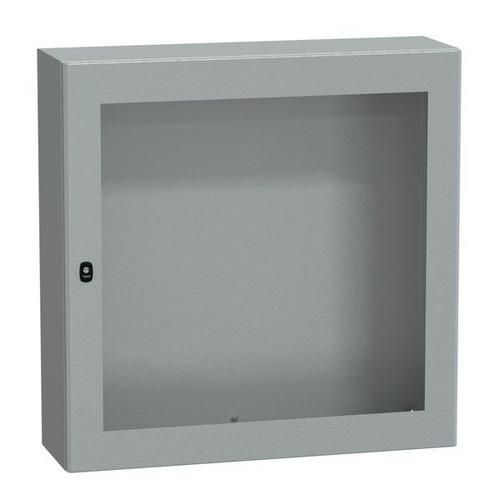

Spacial S3D steel wall cabinet with viewing door. 1000 x 1000 x 1000 x 300 mm. One-piece body, without mounting plate. 3-point locking system with handle and 3 mm double-bit lock. Made of steel, epoxy-polyester powder coating. Protection class IP 66, IK08, color RAL 7035. 2 cable gland plates included in delivery, standard.
| Property | Value |
| Suitable for outdoor installation: | yes |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 1000.0 mm |
| Width: | 1000.0 mm |
| Depth: | 300.0 mm |
| Color: | gray |
| Protection class (IP): | IP66 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | no |
| With viewing door: | yes |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | yes |
| Impact resistance: | IK08 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 4X |
| Freestanding: | no |
| Floor-standing wall model: | yes |
| Suitable for wall mounting: | yes |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load of the housing/cabinet according to IEC 62208: | 250.0 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 250.0 N |
Features
HAB
Spacial tspt o plate H1000xW1000xD300
Manufacturer
HAN
NSYS3D101030T
GTIN
3606480160295
Surface finish
Powder coated
Width
1000.0 mm
EMC version
No
Color
Suitable for outdoor installation
Yes
Suitable for wall mounting
Yes
Height
1000.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK08
IP protection)
IP66
Protection class (NEMA)
4X
Depth
300.0 mm
Material
Steel
Material quality
Other
