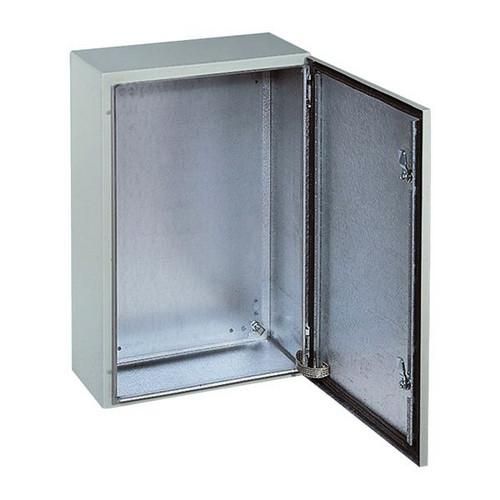

S3HF EMC housing H600xW400xD200 CHA. Product series: Spacial S3HF - Equipment application: Industrial application - Product or component type: Compact enclosure - Nominal enclosure height: 600 mm - Nominal enclosure width: 400 mm - Nominal enclosure depth: 200 mm - Description of mounting plate: without mounting plate - Type of feed-through plate: without feed-through plate - Equipment structure: Door with lock 1, enclosure 1.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 600.0 mm |
| Width: | 400.0 mm |
| Depth: | 200.0 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | Aluminium |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | yes |
| With viewing door: | no |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | no |
| With ventilation door: | no |
| Mast mounting: | yes |
| Impact resistance: | IK10 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | no |
| Suitable for wall mounting: | yes |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load on the door(s) according to IEC 62208: | 50.0 N |
| Max. permissible load on the mounting plate according to IEC 62208: | 250.0 N |
Features
HAB
S3HF EMV H600xW400xD200 CHA
Manufacturer
HAN
NSYS3HF6420P
GTIN
3606480212819
Surface finish
Powder coated
Width
400.0 mm
EMC version
Yes
Color
Suitable for outdoor installation
No
Suitable for wall mounting
Yes
Height
600.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
12
Depth
200.0 mm
Material
Aluminum
Material quality
Other
