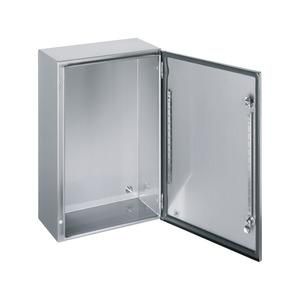

SPACIAL S3X stainless steel 316L, Scotch Brite® finish, H400xW400xD200mm.. Product series: Spacial S3X - Device application: Multi-purpose - Product or component type: Compact enclosure - Nominal enclosure height: 400 mm - Nominal enclosure width: 400 mm - Nominal enclosure depth: 200 mm - Device structure: 1 lock (door), 1 enclosure, 1 door.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | other |
| Height: | 400.0 mm |
| Width: | 400.0 mm |
| Depth: | 200.0 mm |
| Color: | stainless steel |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | stainless steel |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | no |
| With viewing door: | no |
| Depth-adjustable mounting plate: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | Stainless steel 316 (V4A) |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | no |
| Suitable for wall mounting: | yes |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load on the housing/cabinet according to IEC 62208: | 50.0 N |
| Max. permissible load on the door(s) according to IEC 62208: | 50.0 N |
| Max. permissible load on the mounting plate according to IEC 62208: | 250.0 N |
Features
HAB
Spacial S3X 316L H400xW400xD200mm ed
Manufacturer
HAN
NSYS3X4420H
GTIN
3606480155154
Surface finish
Other
Width
400.0 mm
EMC version
No
Color
Suitable for outdoor installation
No
Suitable for wall mounting
Yes
Height
400.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
12
Depth
200.0 mm
Material
Stainless steel
Material quality
Stainless steel 316 (V4A)
