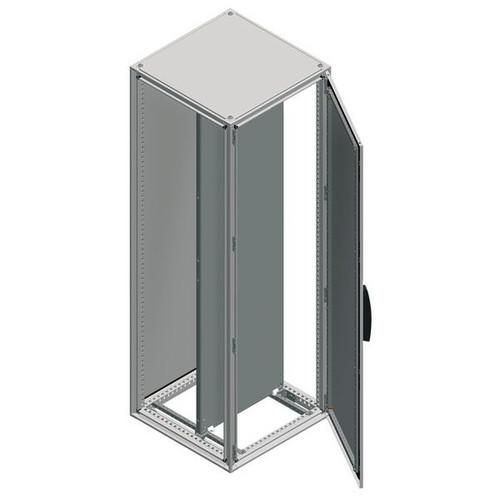

Spacial SF wall/bay cabinet with mounting plate. 1800 x 800 x 400mm. Unique frame profile based on the use of a high-strength, selected profile with 18 consecutive bends, which ensures very high stability up to 1,000. Structure: top and bottom frame and 4 vertical supports made of galvanized steel with a thickness of 1.5 mm. Door: sheet steel with a thickness of 1.8 mm. Coating: Epoxy-polyester, structured surface, color RAL 7035 (gray).
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 1800.0 mm |
| Width: | 800.0 mm |
| Depth: | 400.0 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | yes |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | no |
| With Viewing door: | no |
| Mounting plate depth adjustable: | yes |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | yes |
| Suitable for wall mounting: | no |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load of the housing/cabinet according to IEC 62208: | 1000.0 N |
| Max. permissible load of the door(s) according to IEC 62208: | 60.0 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 300.0 N |
Features
HAB
NSYSF18840P HxWxD=1800x800x400mm
Manufacturer
HAN
NSYSF18840P
GTIN
3606485117515
Surface finish
Powder coated
Width
800.0 mm
EMC version
No
Color
Suitable for outdoor installation
No
Suitable for wall mounting
No
Height
1800.0 mm
With mounting plate
Yes
RAL number
7035.0
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
12
Depth
400.0 mm
Material
Steel
Material quality
Other
