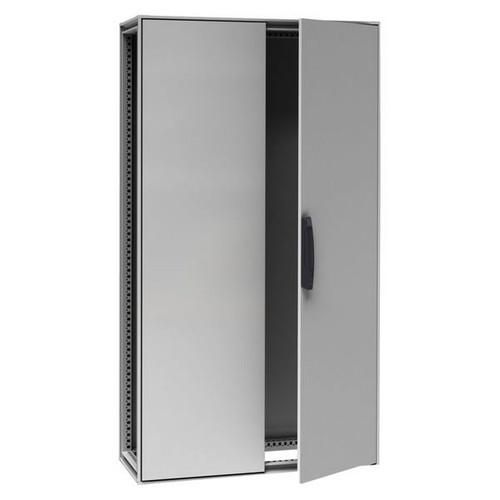

Schneider Electric NSYSF2010602DP Spacial SF m plate 2000x1000x600mm cabinet

Description

Features

Reviews

Spacial SF pre-assembled steel enclosure with mounting plate, double door. 2000 x 1000 x 600 mm. Assembled. Accessibility from the front, rear and sides. Without flange plate. 4-point locking system with handle and 5mm double-bit lock. Galvanized steel for frame and supports. Protection class IP 55, IK10, grey RAL 7035. Offer consists of 2x doors, 1x door opener for left door, 1x mounting plate, 2x guide rails, 4x mounting plate holder, 1x rear wall, 1x roof, 1x frame, 1x locking system.

Property	Value
Suitable for outdoor installation:	no
With rear door:	no
Surface finish:	powder-coated
Height:	2000.0 mm
Width:	1000.0 mm
Depth:	600.0 mm
Color:	grey
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	yes
Material:	steel
Number of locks:	1.0
Number of Doors:	2.0
EMC version:	no
With viewing door:	no
Mounting plate depth adjustable:	yes
Suitable for metric mounting:	yes
With ventilation door:	no
Mast attachment:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the housing/cabinet according to IEC 62208:	1000.0 N
Max. permissible load on the door(s) according to IEC 62208:	60.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
