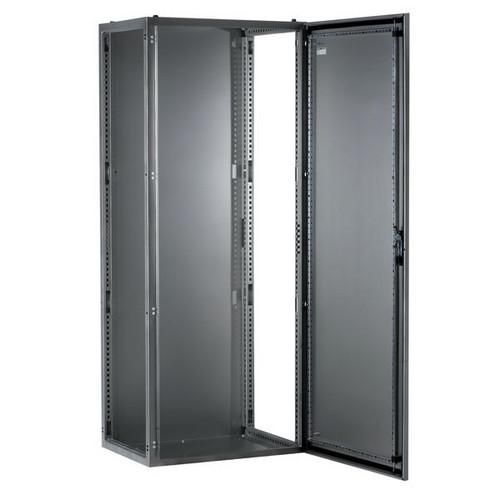

Schneider Electric NSYSFX20650 SFX 304L matching H2000xW600xD500mm stainless steel enclosure

Description

Features

Reviews

SFX 304L matching stainless steel case, H2000xW600xD500mm, Scotch Brite® finish. Product series: Spacial SFX - Equipment application: Multipurpose - Product or component type: matching cabinet - Nominal enclosure height: 2000 mm - Nominal enclosure width: 600 mm - Nominal enclosure depth: 500 mm - Installation accessory type: floor standing - Equipment composition: 1 locking system with handle (door), 1 structure, 1 door with reinforcement frame, 1 cable entry plate, 4 mounting plate bracket.

Feature	Value
Suitable for outdoor installation:	no
With rear door:	no
Finish of the surface:	other
Height:	2000.0 mm
Width:	600.0 mm
Depth:	500.0 mm
Color:	stainless steel
Protection class (IP):	IP66
RAL number:	7035.0
With mounting plate:	no
Material:	stainless steel
Number of locks:	1.0
Number of doors:	1.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	Stainless steel 316 (V4A)
Protection class (NEMA):	4X
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the door(s) according to IEC 62208:	50.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
