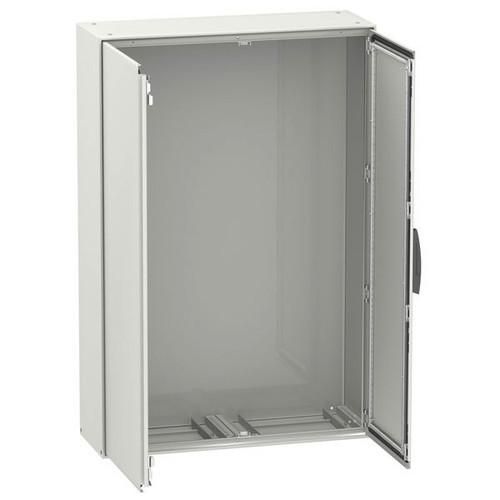

Spacial SM Monobloc compact standing cabinet with 2 solid doors on the front. 1200 x 1000 x 300 mm. Welded rear panel, including mounting plate. 4-point door locking system with DB 5mm handle. Made of steel. Protection class IP 55, IK10, color RAL 7035. Includes 4 brackets for the mounting plate.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 1200.0 mm |
| Width: | 1000.0 mm |
| Depth: | 300.0 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | yes |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 2.0 |
| EMC version: | no |
| With viewing door: | no |
| Mounting plate depth adjustable: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | yes |
| Suitable for wall mounting: | no |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load of the housing/cabinet according to IEC 62208: | 500.0 N |
| Max. permissible load of the door(s) according to IEC 62208: | 60.0 N |
| Max. permissible load of the mounting plate according to IEC 62208: | 300.0 N |
Features
HAB
SpacialMonobloc m plate 1200x1000x300mm
Manufacturer
HAN
NSYSM1210302DP
GTIN
3606485120027
Surface finish
Powder coated
Width
1000.0 mm
EMC version
No
Color
Suitable for outdoor installation
No
Suitable for wall mounting
No
Height
1200.0 mm
With mounting plate
Yes
RAL number
7035.0
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
12
Depth
300.0 mm
Material
Steel
Material quality
Other
