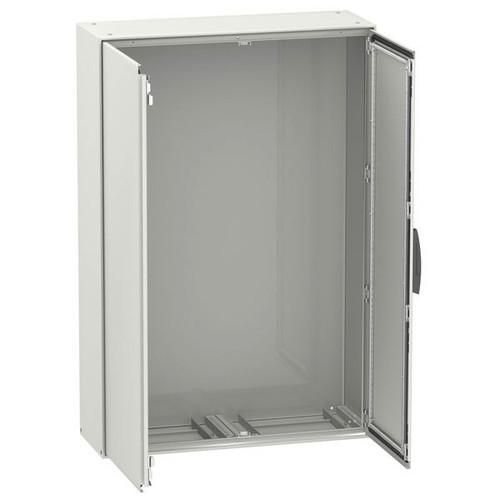

Schneider Electric NSYSM2016602D SpacialMonobloc o plate 2000x1600x600mm standing cabinet

Description

Features

Reviews

Spacial SM monobloc standing cabinet without mounting plate, 2000x1600x600mm. Product series: Spacial SM - Product or component type: Compact enclosure - Equipment application: Multipurpose - Installation accessory type: Floor standing - Equipment composition: 1 Locking system with handle for door, 4 Mounting plate support, 1 Enclosure, 1 Blocking system for left door, 2 Door, 1 Cable entry plate - Removable parts: Door Fixed with screws for hinge, Mounting plate support Fixed with screws - Nominal enclosure height: 2000 mm - Nominal enclosure width: 1600 mm - Nominal enclosure depth: 600 mm.

Feature	Value
Suitable for outdoor installation:	no
With rear door:	no
Finish of the surface:	powder-coated
Height:	2000.0 mm
Width:	1600.0 mm
Depth:	600.0 mm
Color:	gray
Protection class (IP):	IP55
RAL number:	7035.0
With mounting plate:	no
Material:	Steel
Number of locks:	1.0
Number of doors:	1.0
EMC version:	no
With viewing door:	no
Depth-adjustable mounting plate:	no
Suitable for metric mounting:	yes
With ventilation door:	no
Mast mounting:	no
Impact resistance:	IK10
Sloped roof:	no
Suitable for wall installation:	no
Material quality:	other
Protection class (NEMA):	12
Freestanding:	no
Floor-standing wall model:	yes
Suitable for wall mounting:	no
Corner model:	no
Intermediate installation:	no
Can be coupled:	no
Max. permissible load on the housing/cabinet according to IEC 62208:	500.0 N
Max. permissible load on the door(s) according to IEC 62208:	60.0 N
Max. permissible load on the mounting plate according to IEC 62208:	300.0 N
