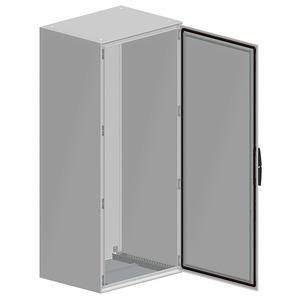

Spacial SM Monobloc compact standing cabinet with solid door on the front. 2000 x 800 x 500 x 500 mm. Welded rear panel, without mounting plate. 4-point door locking system with DB 5mm handle. Made of steel. Protection class IP 55, IK10, color RAL 7035. Includes 4 brackets for the mounting plate and 2 parts of cable gland plate.
| Property | Value |
| Suitable for outdoor installation: | no |
| With rear door: | no |
| Surface finish: | powder-coated |
| Height: | 2000.0 mm |
| Width: | 800.0 mm |
| Depth: | 500.0 mm |
| Color: | gray |
| Protection class (IP): | IP55 |
| RAL number: | 7035.0 |
| With mounting plate: | no |
| Material: | steel |
| Number of locks: | 1.0 |
| Number of doors: | 1.0 |
| EMC version: | no |
| With viewing door: | no |
| Depth-adjustable mounting plate: | no |
| Suitable for metric mounting: | yes |
| With ventilation door: | no |
| Mast mounting: | no |
| Impact resistance: | IK10 |
| Sloped roof: | no |
| Suitable for wall installation: | no |
| Material quality: | other |
| Protection class (NEMA): | 12 |
| Freestanding: | no |
| Floor-standing wall model: | yes |
| Suitable for wall mounting: | no |
| Corner model: | no |
| Intermediate installation: | no |
| Can be coupled: | no |
| Max. permissible load on the housing/cabinet according to IEC 62208: | 500.0 N |
| Max. permissible load on the door(s) according to IEC 62208: | 60.0 N |
| Max. permissible load on the mounting plate according to IEC 62208: | 300.0 N |
Features
HAB
SpacialMonobloc o Plate 2000x800x500mm
Manufacturer
HAN
NSYSM20850
GTIN
3606485120812
Surface finish
Powder coated
Width
800.0 mm
EMC version
No
Color
Suitable for outdoor installation
No
Suitable for wall mounting
No
Height
2000.0 mm
With mounting plate
No
RAL number
7035.0
Impact resistance
IK10
IP protection)
IP55
Protection class (NEMA)
12
Depth
500.0 mm
Material
Steel
Material quality
Other
