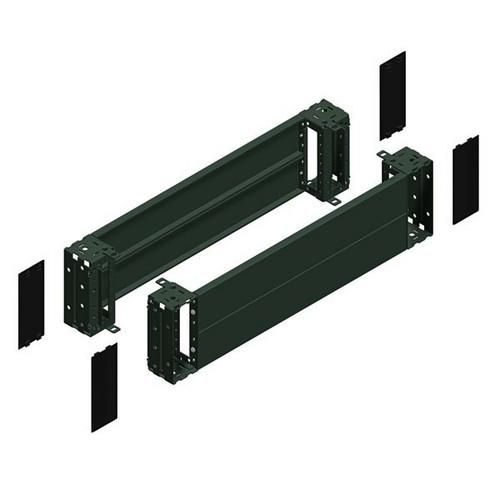

Front panels for enclosure bases - Spacial CRN, S3D, SF, SM, SD. 200 x 600 mm. Enclosure accessories. Front elements and corners of the base for mounting on universal enclosures. Side elements are required additionally. Permanent permissible load 1300 kg. Sheet steel, powder-coated. IP30, IK10, gray RAL 7022. Assembly consists of 1x front panel, 1x rear panel, 4x corners, 4x corner cover, fastening material.
| Property | Value |
| Height: | 200.0 mm |
| Width: | 600.0 mm |
| Depth: | 600.0 mm |
| Suitable for housing width: | 600.0 mm |
| Suitable for cable routing: | yes |
| Color: | gray |
| Suitable for ventilation: | no |
| Design: | base front/back |
| Material: | steel |
| Suitable for outdoor installation: | no |
| Max. load capacity: | 1300.0 kg |
Features
Suitable for housing width
600.0 mm
Suitable for ventilation
No
Suitable for cable routing
Yes
HAB
NSYSPF6200 200x600mm
Manufacturer
HAN
NSYSPF6200
GTIN
3606485126678
Version
Base front/back
Width
600.0 mm
Color
Suitable for outdoor installation
No
Height
200.0 mm
Depth
600.0 mm
Material
Steel
