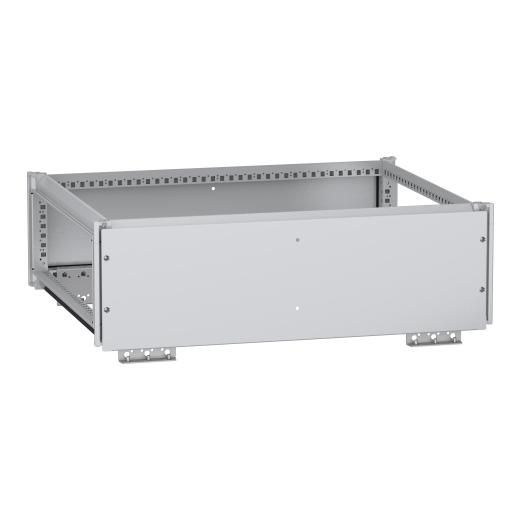

This Top Busbar Chamber is a power distribution accessory that sits on top of PanelSeT SFN floor standing enclosures made from decarbonised steel. It contains recycled steel produced using renewable energy, resulting in a significant reduction in CO2 emissions. It has a nominal height, width and depth of 300mm, 1000mm and 800mm respectively. The frame and supports of the chamber are made from galvanised steel to ensure a long service life. The panels are made from sheet steel. An epoxy polyester powder coating provides a smooth appearance. The chamber is grey (RAL 7035) in colour with a black (RAL 9005) handle. It is supplied with a gasket, front and rear panels and four eyebolts. The chamber has an IP55 rating, meaning it is resistant to the ingress of dust, water and oil. The enclosure is also shock resistant and has an IK10 rating. Operation is convenient thanks to access from the back, front and side.
