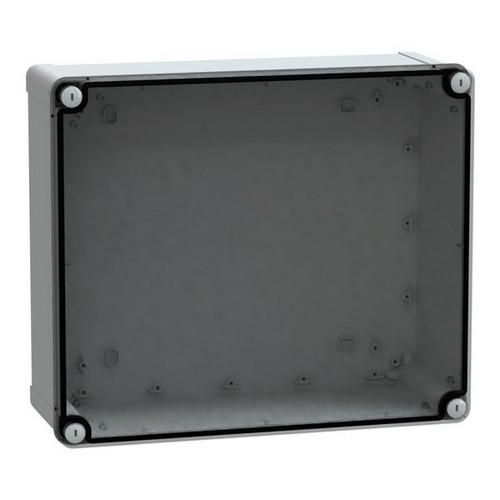

Schneider Electric NSYTBS342912T ABS 325x275x120 TRA industrial enclosure

Description

Features

Reviews

Thalassa TBS industrial ABS box with transparent lid H20. Int 325 x 275 x 120 mm. Ext 341 x 291 x 128 mm. Wall mounting enclosure with flat transparent lid. Screw locking with captive plastic screws (slotted). Validations DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (Acrylonitrile Butadiene Styrene), Ambient temperature for storage/operation (-15 to 40 °C) / (-25 to 60 °C). IP66 (NEMA 4.4X), IK07, gray RAL 7035, insulation class II. Packaging unit 2 pieces.

Property	Value
Height:	341.0 mm
Width:	291.0 mm
Depth:	128.0 mm
Inner depth:	120.0 mm
Protection class (IP):	IP66
Protection class:	II
Impact resistance:	IK07
Housing material:	Plastic
RAL number:	7035.0
Mounting type:	Surface-mounted
Suitable for outdoor use:	yes
Surface protection:	untreated
Suitable for lightning protection:	yes
Mounting option:	no
With mounting plate:	no
Number of cable entries:	2.0
Number of modules:	0.0
Number of openings for flange plates:	0.0
Number of rows:	0.0
Type of cover:	Cover
Type of door:	without
Cover design:	closed
Functional integrity:	without
Material thickness of housing:	12.5 mm
Material thickness of door/cover:	12.5 mm
With lock:	no
Transparent cover/door:	yes
Color:	gray
Protection class (NEMA):	4
